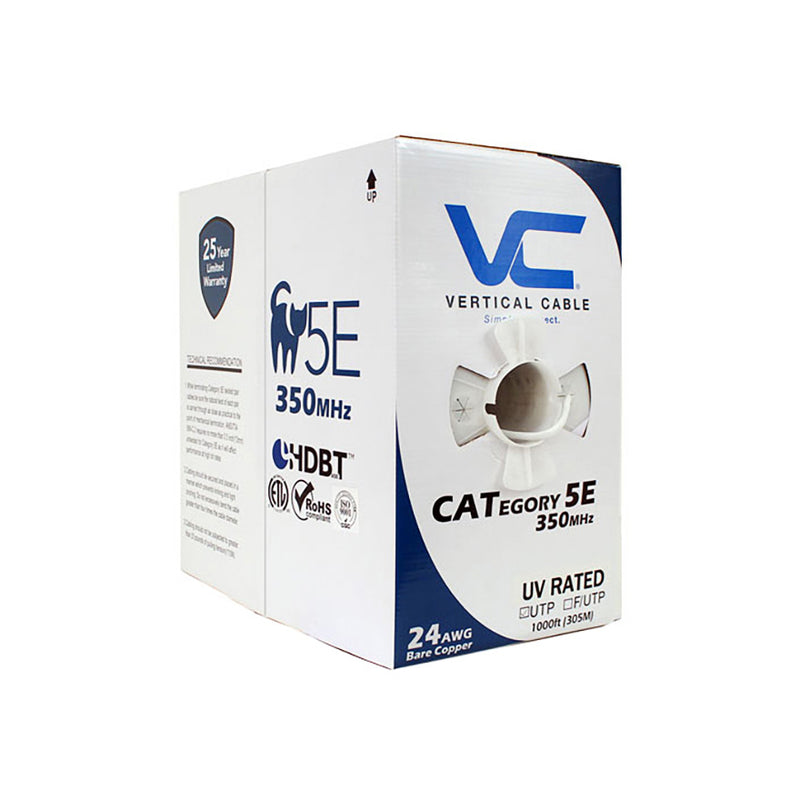

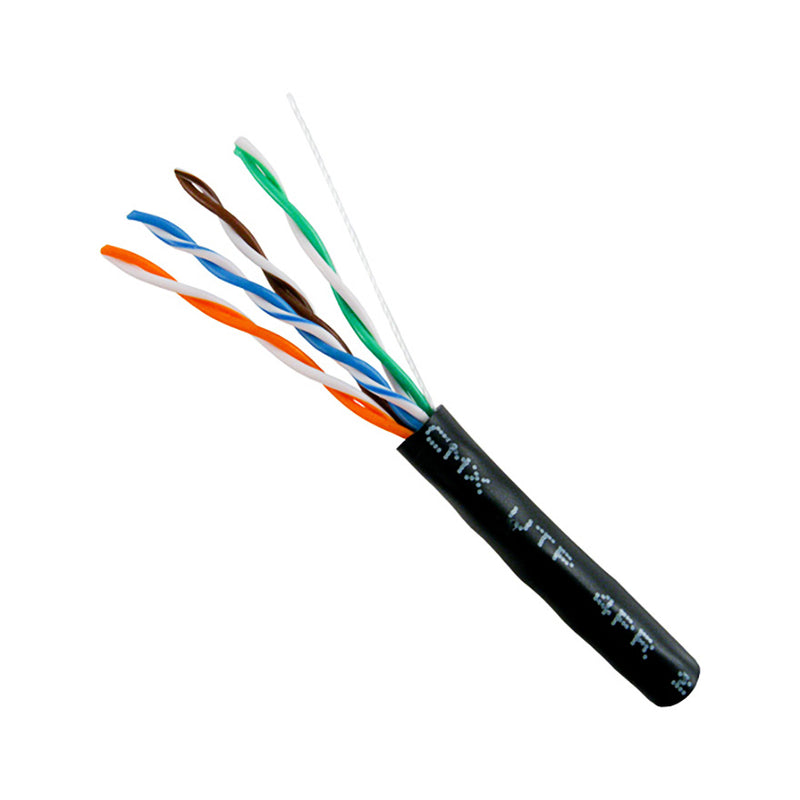

Vertical Cable 059-484/CMX UV Resistant Cat5e Category Cable (Black | 1,000 Feet)
High speed modern needs deserve high speed performance! Get the Vertical Cable 059-484/CMX to handle just about anything under the sun. Audio, video, any type of data transfer will be delivered with the weatherproof security of this Cat5e Category Cable.
Weatherproof
Vertical cable’s 059-484/CMX is constructed with a protective double jacket layer. This cable is not only storm-proof, but also UV resistant to withstand any type of harsh environment.
Effortless Install
The Vertical Cable 059-484/CMX has an easily-strippable jacket and sequential distance offering you an effortless install.
| Rated Temperature: | -40~75°C |
| Rated Voltage: | 60V |
| Product Standard Certification: | CMX |
| Reference Standard: | TIA/EIA 568 & ISO/IEC 11801 |

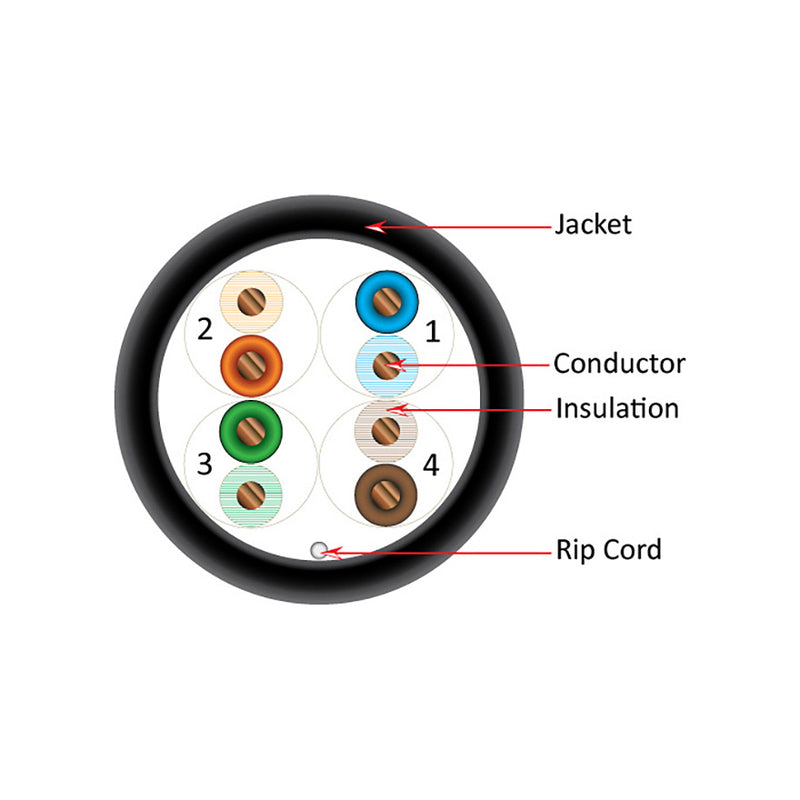

Conductor
| Size: | 24 AWG |
Insulation
| Average Thickness (mm): | 0.205 |
| Min. Point Thickness (mm): | 0.190 |
| Insulation Diameter (±0.005mm): | 0.91 |
| Twisted Pair Diameter (±0.01): | 1.82 |
Assembly
| Diameter: | 3.80 |
Jacket
| Black: | LLDPE (UV) |
| Average Thickness (mm): | 0.60 |
| Min. Point Thickness (mm): | 0.54 |
| Outer Diameter (±0.10mm): | 5.10 |
| Rip Cord: | Yes |
Color of Pairs
| Pair 1: | Blue, White-Blue |
| Pair 2: | Orange, White-Orange |
| Pair 3: | Green, White-Green |
| Pair 4: | Brown, White-Brown |
Mechanical Characteristics
| Test Object: | Jacket |
| Test Material: | LLDPE |
| Before, Tensile Strength (Mpa): | ≥13.8 |
| Aging, Elongation (%): | ≥100 |
| Aging Condition (°Cxhrs): | 100x168 |
| After, Tensile Strength (Mpa): | ≥85% of unaged |
| Aging, Elongation (%): | ≥50% of unaged |
| Cold Bend (-40±2°Cx4hrs): | No Crack |
Markings
| On Jacket: | VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24 AWG OUTDOOR UV (SEGUENTIAL FOOT MARKERS ON JACKET) |
