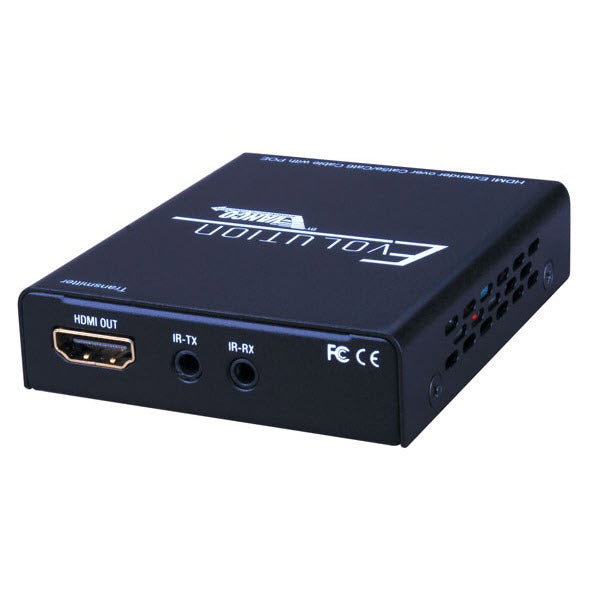

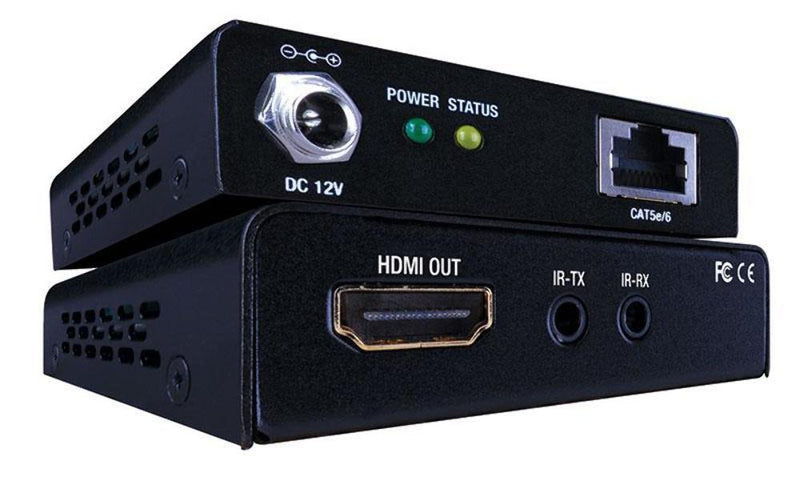

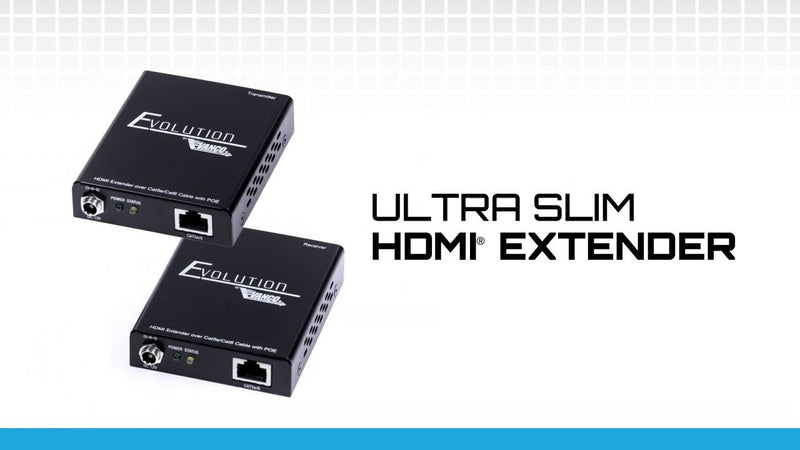

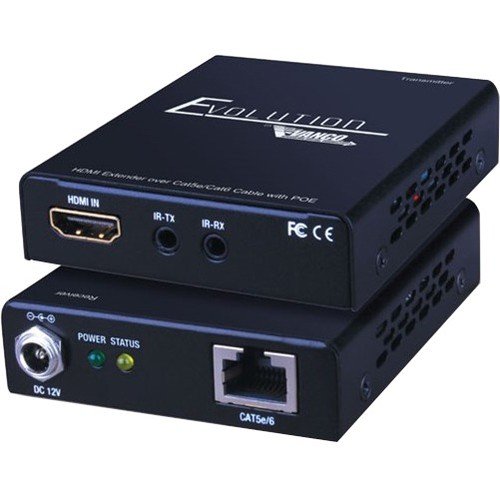

Vanco EVEX2006 Evolution Ultra Slim HDMI Single Cat5e/6 Cable Extender with PoE

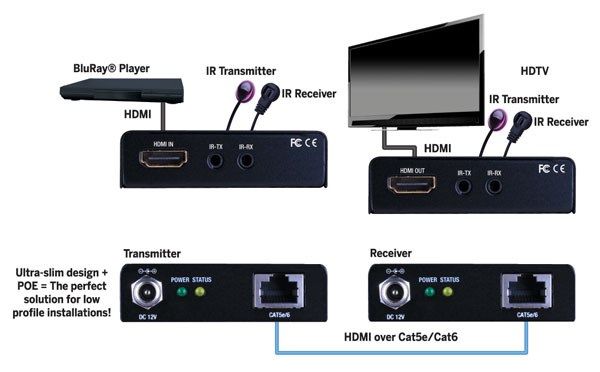

• Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
• Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
• Slim and compact design
• Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
• Wideband IR signal from 20KHz to 60KHz
• Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
• Features Auto EDID and EQ Management for plug and play installation
• Works with HDMI and HDCP compliant devices
• HDCP 2.0 compliant
• Pure uncompressed 7.1ch digital audio
• Supports DTS-HD and Dolby TrueHD high bit rate audio
• Allows cascading to create a larger distribution system
• Fully compatible with any Evolution by Vanco product
• Dimensions: 2.7” (68.58mm) W x .7” (17.78mm) H x 3.25” (82.55mm) D
• Patent No. 9,710,038 B1

Package Contents:
EVEX2006 (TX & RX)
(2) IR Blasters (TX)
(2) IR Receivers (RX)
(1) DC 12V in line power supply
Product Manual
