Tripp Lite SUINT2200LCD2U 2200VA 1980W INTL UPS Smart Online 208/230V USB 2U

SKU: sil71674


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SUINT2200LCD2U
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SUINT2200LCD2U

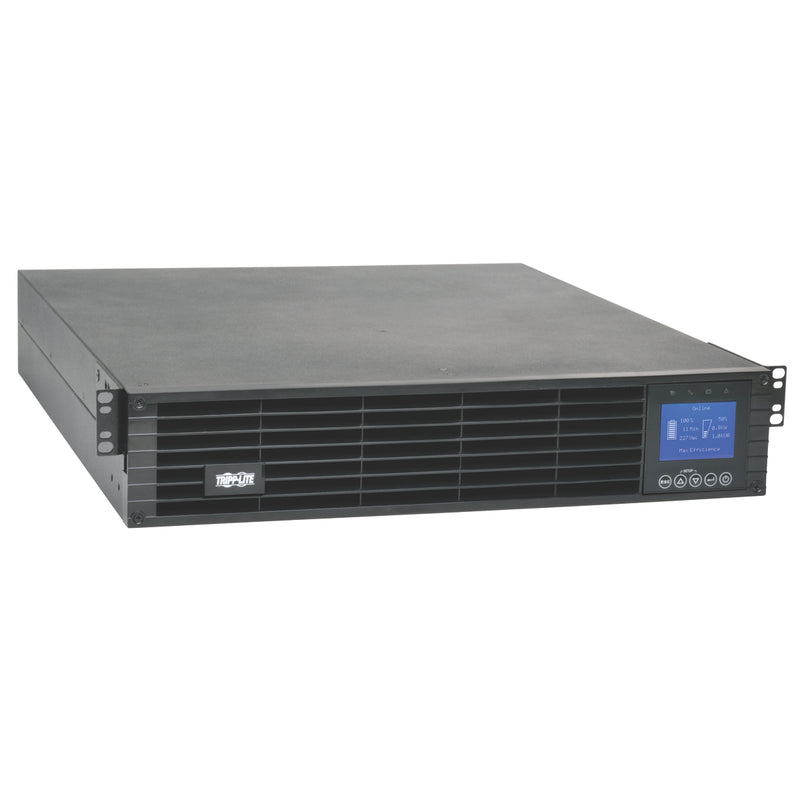

Product Name: SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS
Marketing Information: The SUINT2200LCD2U SmartOnline® 2200VA/1980W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes.

In case of AC power outage, the internal batteries support 11.7 minutes of runtime at half load and 4.3 minutes at full load. Extended runtime is possible with optional external battery packs. "Smart" battery packs, such as Tripp Lite's BP48V27-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.

Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it's precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems.

Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots and activity logs.
Product Type: Dual Conversion Online UPS

Technical Information

Receptacles: 1 x IEC 60320 C19
Receptacles: 8 x IEC 60320 C13

Power Description

Load Capacity: 2200 VA/1980 W
Input Voltage: 200 V AC
Input Voltage: 230 V AC
Input Voltage: 208 V AC
Input Voltage: 220 V AC
Input Voltage: 240 V AC
Output Voltage: 200 V AC
Output Voltage: 208 V AC
Output Voltage: 220 V AC
Output Voltage: 230 V AC
Output Voltage: 240 V AC

Battery Information

Backup/Run Time (Full Load): 4.30 Minute
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Height: 3.5"
Width: 17.2"
Depth: 19.5"
Form Factor: Rack-mountable
Weight (Approximate): 50.94 lb


Package Contents:

  • SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS
  • 4-Post Rack-mount Installation Kit
  • USB Cable
  • RS-232 Cable
  • C19-to-C20 Power Cable
  • 2 x C13-to-C14 Power Cables
  • Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 2 Year
