Tripp Lite SU3000LCD2UHV UPS Smart 3000VA 2700W LCD 208/240V USB DB9 2U

SKU: sil71667

$1,899.99

General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SU3000LCD2UHV
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SU3000LCD2UHV

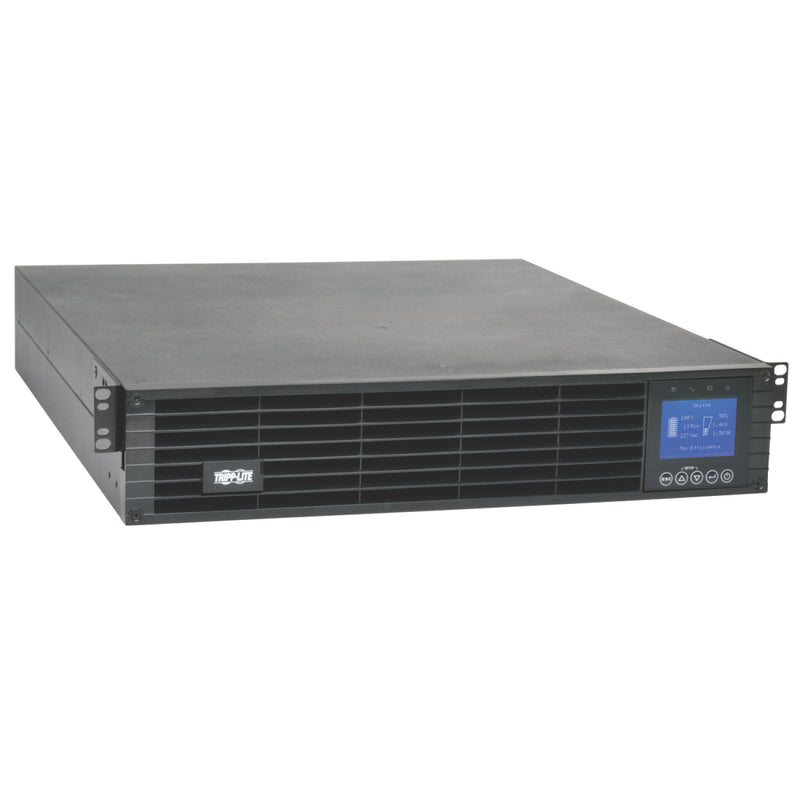

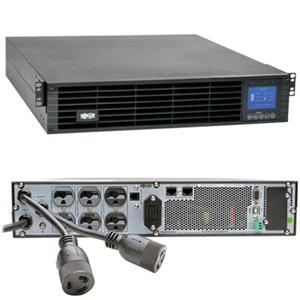

Product Name: SmartOnline SU3000LCD2UHV 3000VA Rack-mountable UPS
Marketing Information: The SU3000LCD2UHV SmartOnline® 3000VA/2700W On-Line Double-Conversion UPS converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes. An interactive front-panel LCD interface provides detailed real-time UPS status and advanced setup and configuration options.

In case of AC power outage, the internal batteries support 13.5 minutes of runtime at half load and five minutes at full load. Extended runtime is possible with optional external battery packs. "Smart" battery packs, such as Tripp Lite's BP72V18-2US, are automatically sensed and configured during replacement. An intelligent battery management system extends battery life.

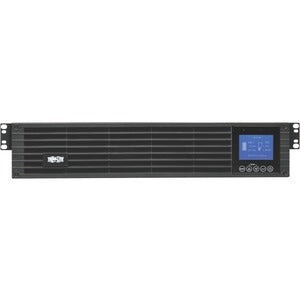

Managing the UPS is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it's precise power quality for sensitive systems or the highest possible electrical efficiency, all while ensuring 100% uptime for your systems.

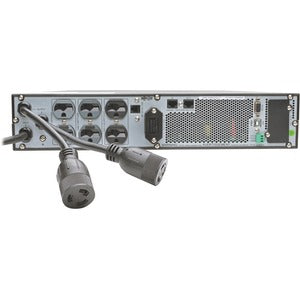

This UPS offers eight receptacles-six NEMA 6-15/20R and two NEMA L6-20R-in two switched load banks. Power is filtered to protect connected equipment against surges and EMI/RFI line noise that can damage equipment or destroy data. Adding an optional Tripp Lite SNMPWEBCARD accessory card permits remote management of the UPS, including reboots, configuration, updates and activity logs.


Product Type: Dual Conversion Online UPS

Technical Information

Receptacles: 2 x NEMA L6-20R
Receptacles: 6 x NEMA 6-15/20R

Power Description

Load Capacity: 3000 VA/2700 W
Input Voltage: 230 V AC
Output Voltage: 230 V AC

Battery Information

Backup/Run Time (Full Load): 5 Minute

Physical Characteristics

Height: 3.5"
Width: 17.2"
Depth: 24.3"
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 70.81 lb

Miscellaneous

Package Contents:

  • SmartOnline SU3000LCD2UHV 3000VA Rack-mountable UPS
  • 4-post Rack-mount Installation Kit
  • USB Cable
  • RS-232 Cable
  • Owner's Manual


Environmentally Friendly: Yes
Environmental Certification: RoHS

Warranty

Limited Warranty: 2 Year
