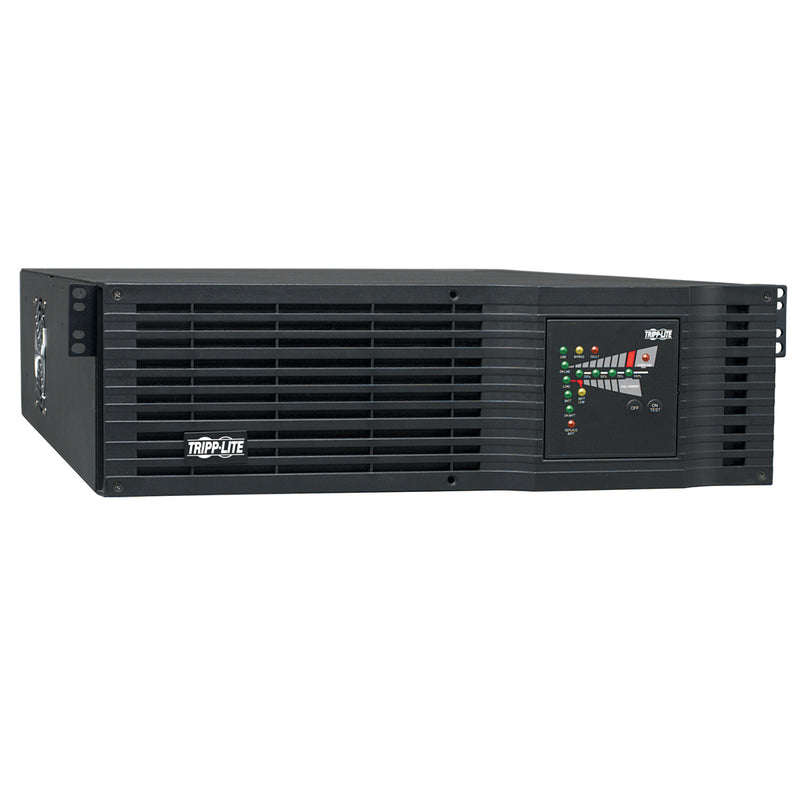

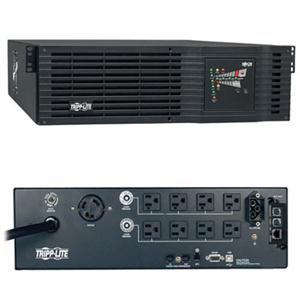

Tripp Lite SU3000LCD2UHV 3000VA 2400W 208V/240V DB9 Preinstalled WEBCARDLX

General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SU3000RTXL3UN
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SU3000RTXL3UN
Product Name: SU3000RTXL3UN US with Pre-installed WEBCARDLX
Marketing Information: The SU3000RTXL3UN SmartOnline® 120V 3kVA 2.4kW On-Line Double-Conversion UPS provides the highest level of battery backup and AC power protection for critical server, network and telecom equipment. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes and zero transfer time to battery.

Operating with a high 94% efficiency in optional economy mode, the SU3000RTXL2U cuts BTU heat output, power consumption and energy costs. Featuring four NEMA 5-15/20R and four 5-15R outlets in two switchable breakered load banks, as well as one non-breakered L5-30R outlet, the SU3000RTXL3UN has an internal battery that provides 14 minutes of support at half load and 5 minutes at full load. Adding optional external battery packs, such as Tripp Lite's BP72V15-2U (sold separately), provides extended runtime.

The pre-installed Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Product Type: Dual Conversion Online UPS

Technical Information

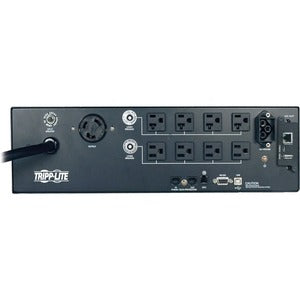

Plug/Connector Type: NEMA L5-30P
Receptacles: 1 x NEMA L5-30R
Receptacles: 4 x NEMA 5-15/20R
Receptacles: 4 x NEMA 5-15R
Dataline Protection: RJ-11
Dataline Protection: RJ-45
Protection Type: Brownout
Protection Type: EMI / RFI
Protection Type: Under Voltage
Protection Type: Over Voltage
Bypass Switch: Automatic
Emergency Power OFF: Yes
Cord Length: 10 ft

Power Description

Load Capacity: 3000 VA/2400 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Current: 24 A
Waveform Type: Pure Sine Wave
Waveform Type: Sine Wave
Surge Energy Rating: 510 J
Circuit Breaker: Yes

Management

Network Management: SNMP Manageable
Alarm: Power Failure
Alarm: Low Battery
Alarm: Overload
Alarm: Remote Shutdown
Alarm: UPS Fault
Alarm: UPS StartUp

Controls/Indicators

Status Indicators:

• 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information
• 4-LED meter displays load and battery charge levels
• LED panel rotates for viewing in rack/tower formats

Interfaces/Ports

Serial Port: Yes
USB: Yes
Total Number of Expansion Slots: 1

Battery Information

Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 14 Minute
Typical Battery Recharge Time: 6 Hour
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 326.10 W

Physical Characteristics

Height: 5.2"
Width: 17.8"
Depth: 26"
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 73.85 lb

Miscellaneous

Package Contents:

• SU3000RTXL3UN US with Pre-installed WEBCARDLX
• Poweralert Software and Cabling
• Mounting Hardware For 4 Post Rack Enclosures
• Instruction Manual

Certifications & Standards:

• UL1778 (USA)
• CSA (Canada)
• NOM (Mexico)
• FCC Part 15 Category A (EMI)

Software Included: Poweralert Software
Environmentally Friendly: Yes
Environmental Certification: RoHS

Warranty

Limited Warranty: 2 Year
