Tripp Lite SU20KRT-1TF UPS Smart Online 20000VA 18000W 20kVA 120-240V USB

SKU: sil71689


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SU20KRT-1TF
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Series: EZ
Product Model: SU20KRT-1TF
Product Name: SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
Marketing Information:

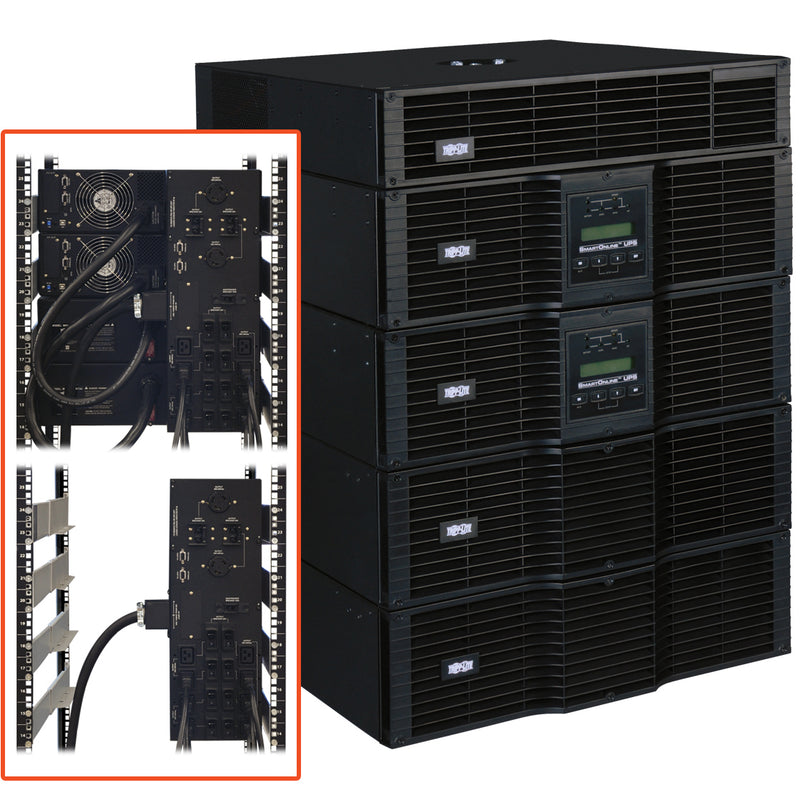

Tripp Lite SU20KRT-1TF 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Product Type: Dual Conversion Online UPS

Technical Information

Plug/Connector Type: Hardwired
Receptacles: 2 x NEMA L6-30R
Receptacles: 4 x NEMA 5-15R
Receptacles: 8 x IEC 60320 C19
Receptacles: 8 x NEMA 5-15/20R
Transfer Time: 0 ns
Overload Protection: Yes

Power Description

Load Capacity: 20 kVA/18 kW
Input Voltage: 240 V AC
Input Voltage: 208 V AC
Output Voltage: 120 V AC
Output Voltage: 208 V AC
Output Voltage: 240 V AC
Input Frequency: 50 Hz to 60 Hz
Output Frequency: 50 Hz to 60 Hz
Input Current: 108 A


Network Management: SNMP Manageable
Bypass Switch: Manual
Bypass Switch: Automatic
Emergency Power OFF: Yes


Serial Port: Yes
USB: Yes
Modular Slots: Communications Slot

Battery Information

Backup/Run Time (Full Load): 4.30 Minute
Backup/Run Time (Half Load): 12.50 Minute
Typical Battery Recharge Time: 8 Hour

Physical Characteristics

Form Factor: Rack/Tower
Rack Height: 14U
Height: 5.1"
Width: 17.5"
Depth: 26"
Weight (Approximate): 44.10 lb

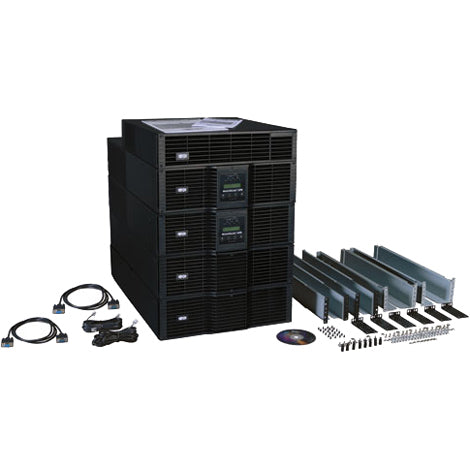

Package Contents:

  • SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
  • 2 x Power Modules
  • 2 x Battery Packs
  • 1 x Transformer
  • L6-30R / C19 Parallel PDU with Bypass Switch
  • 5 x Set of 4 post Rackmount Installation Rails
  • PowerAlert Software CD
  • USB Cable
  • Serial Cable
  • EPO Cable

Additional Information:

Output Receptacles: 8 x C19

Software Included: PowerAlert Software
Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 2 Year
