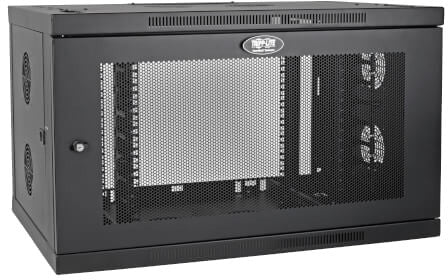

Tripp Lite SRW9UDPVRT 9U Wallmount Rack Enclosure Cabinet Wide Cable Management

SKU: sil71687

$799.99

General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SRW9UDPVRT
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRW9UDPVRT
Product Name: SmartRack SRW9UDPVRT Rack Cabinet
Marketing Information:

9U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep

This SmartRack® rack cabinet is designed to house 9U of equipment, such as network switches and patch panels. It's recommended for branch offices, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

Lockable for Simple and Secure Equipment Access

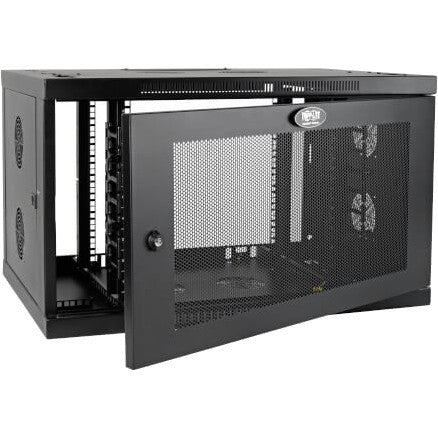

The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.

Generous Airflow Keeps Equipment Cool

Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as Tripp Lite's SRFANWM, sold separately) that keep your equipment cool and functioning at their peak.

Designed with Extra Width for Easier Cable Access and Better Airflow

The SRW9UDPVRT is three inches wider than Tripp Lite's standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.

Easy Enclosure and Equipment Installation

This 9U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. In addition to 9U horizontally, the cabinet can accommodate an additional 2U vertically on both the left and right sides for a total of 13U. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels.

Meets Payment Card Industry Standards

The SRW9UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

Typical Applications

  • Store and organize rack-mount equipment in a network wiring closet, retail location, classroom or other area where you need equipment to be secure
  • Mount on a wall to save valuable floor space in a branch office or back office where floor space is limited


Product Type: Rack Cabinet

Technical Information

Application/Usage: LAN Switch
Application/Usage: Patch Panel
Application/Usage: Server

Physical Characteristics

Form Factor: Wall Mountable
Color: Black Powder Coat
Material: Steel
Maximum Weight Capacity: 200 lb
Static/Stationary Weight Capacity: 200.62 lb
Height: 19.8"
Width: 29.6"
Depth: 21.7"
Weight (Approximate): 51.80 lb
Rack Height: 9U
Rack Width: 19"
Rack Depth: 20.50"

Miscellaneous

Package Contents:

  • SmartRack SRW9UDPVRT Rack Cabinet
  • 22 x M6 Screws
  • 22 x M6 Cage Nuts
  • 22 x M6 Cup Washers
  • 22 x 12-24 Screws
  • Removable Mounting Plate
  • Vertical Cable Management Fingers
  • 3 x Mounting Plate Screws
  • 2 x Keys
  • Owner's Manual


Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS

Warranty

Limited Warranty: 5 Year
