Tripp Lite SRW6UWG 6U Wall Mount Rack Enclosure Server White

SKU: sil71660


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SRW6UWG
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SRW6UWG
Product Name: SRW6UWG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet

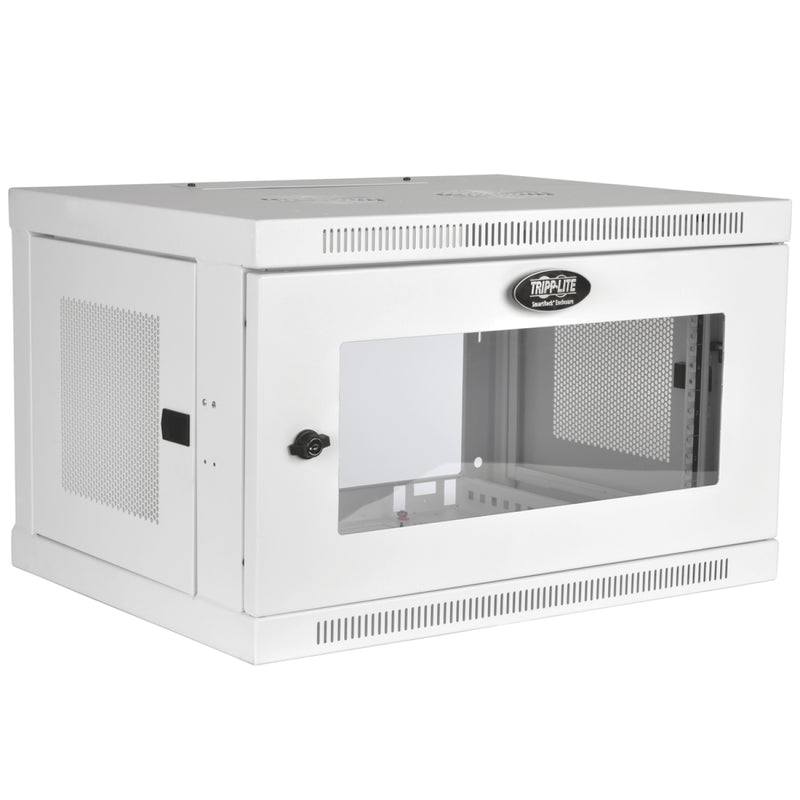

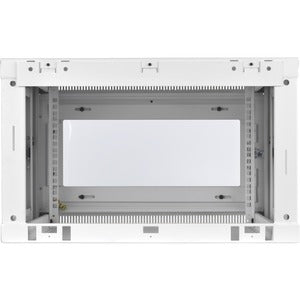

Marketing Information: The SRW6UWG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable white powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

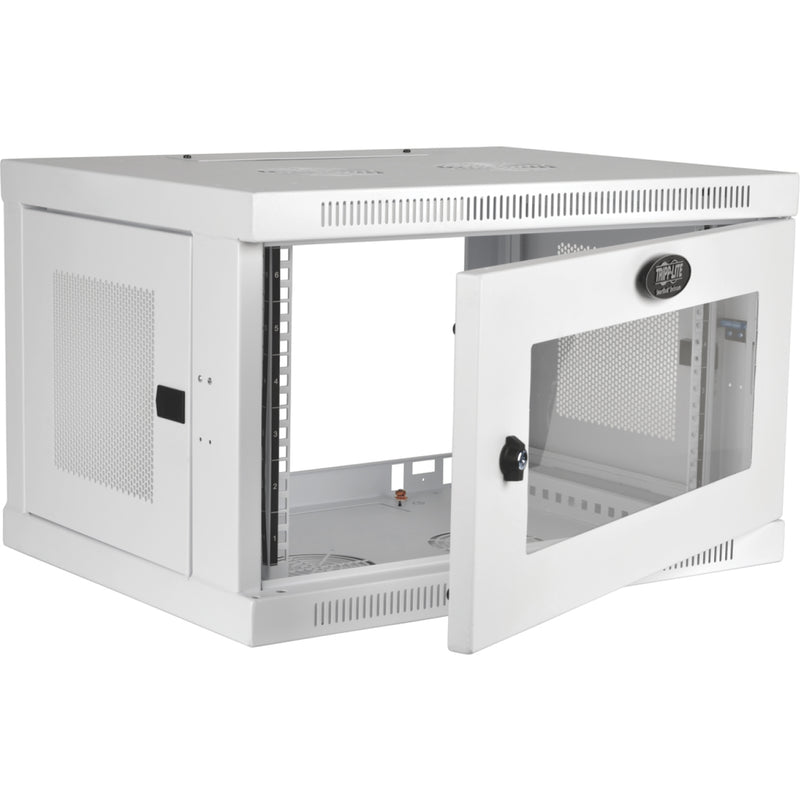

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

To ensure your valuable equipment stays secure, the front door and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

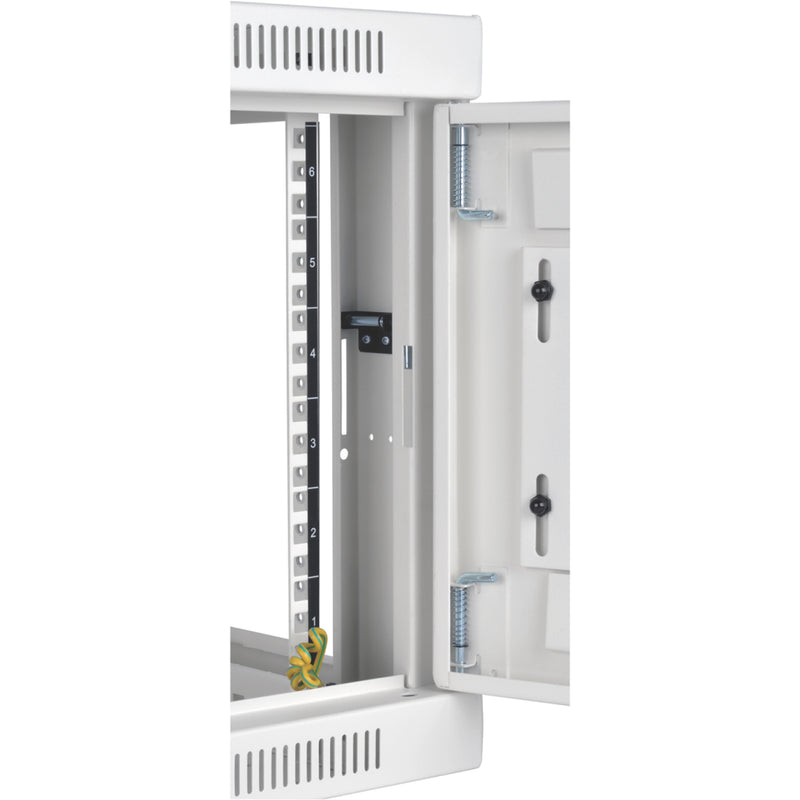

The SRW6UWG comes fully assembled and ready to mount to the wall(or use Tripp Lite's optional SRCASTER caster kit to make it a mobile rolling rack). Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
Product Type: Rack Cabinet

Physical Characteristics

Form Factor: Wall Mountable
Color: White
Material: Steel
Material: Acrylic Window
Maximum Weight Capacity: 200 lb
Static/Stationary Weight Capacity: 200 lb
Height: 14.5"
Width: 23.5"
Depth: 17.5"
Weight (Approximate): 29 lb
Rack Height: 6U
Rack Width: 19"


Package Contents:

  • SRW6UWG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
  • 12 x M6 screws
  • 12 x M6 cage nuts
  • 12 x M6 cup washers
  • 12 x 12-24 screws
  • Removable mounting plate
  • 3 x Mounting plate screws
  • 2 x Keys
  • Owner's manual

Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 5 Year
