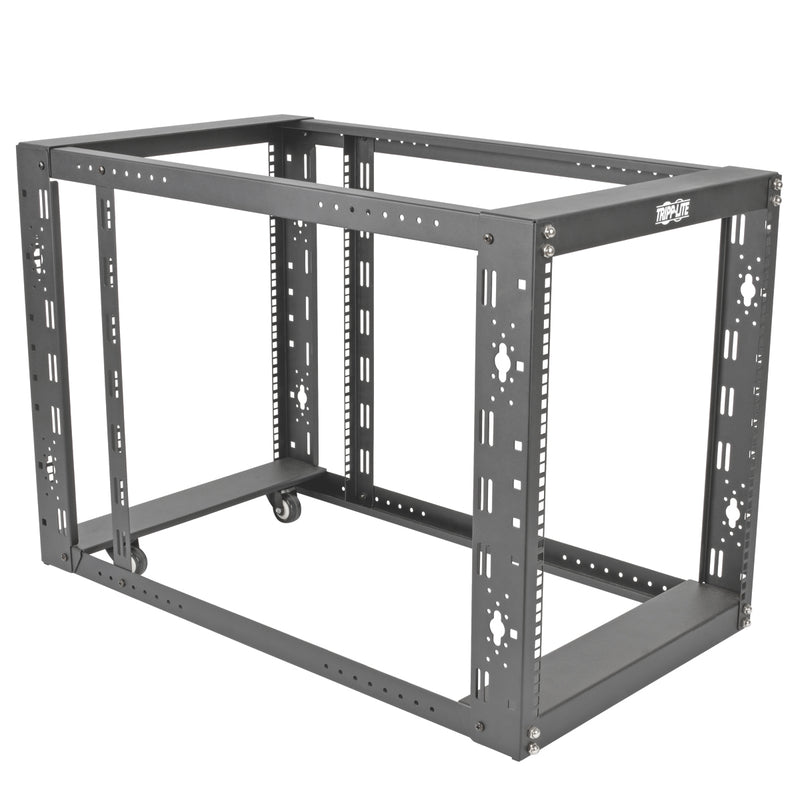

Tripp Lite SR12UBEXPNDKD 12U 4-Post Open Frame Rack Floor Standing 36" Depth

SKU: sil71664


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SR12UBEXPNDKD
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartRack
Product Model: SR12UBEXPNDKD
Product Name: SmartRack 12U 4-Post Open Frame Rack
Marketing Information: The SmartRack 12U Standard-Depth 4-Post Open Frame Rack provides an economical rack-mount solution for small offices, retail locations and other secure IT locations with limited floor space where you need equipment to be organized and easy to access. It's ideal for mounting network switches, routers, patch panels, audio/video components and other EIA-standard 19-inch rack equipment up to 36 inches deep.Constructed from heavy-duty steel with a durable black powder-coated finish, the SR12UBEXPNDKD has a maximum load capacity of 1,000 pounds. Stashed away under a counter, on a workbench or in a corner, this rack saves precious space and allows you fast, easy access at your immediate workspace for organizing, installing and servicing equipment and cabling. The open design allows unobstructed airflow to help keep components cool and performing at their peak.The self-squaring SR12UBEXPNDKD assembles using the included hardware. Built-in casters allow you to roll the rack into place. The vertical mounting rails have square, numbered holes and optional cable management hooks for securing equipment to the steel frame. Only user-supplied standard hand tools are required for setup. Toolless button holes accept 0U vertical installation of PDUs and cable managers.
Product Type: Rack Frame

Technical Information

Application/Usage: A/V Equipment
Application/Usage: Patch Panel
Application/Usage: Server

Physical Characteristics

Color: Black Powder Coat
Material: Steel
Maximum Weight Capacity: 1000 lb
Static/Stationary Weight Capacity: 1000 lb
Height: 25.6"
Width: 20.4"
Depth: 35.9"
Weight (Approximate): 45 lb
Rack Height: 12U
Rack Width: 19"
Rack Depth: 36"


Package Contents:

  • 4 x Vertical mounting rails
  • 4 x Side brackets
  • 2 x Base brackets with built-in casters
  • 2 x Top brackets
  • 2 x Adjustable side support/mounting rails
  • 12 x M6 x 12 mm screws
  • 16 x M8 screws
  • 20 x M6 cage nuts
  • 20 x PVC cup washers
  • 20 x M6 screws
  • 10 x Cable management hooks
  • 10 x Hook mounting screws
  • Owner's Manual

Assembly Required: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 5 Year
