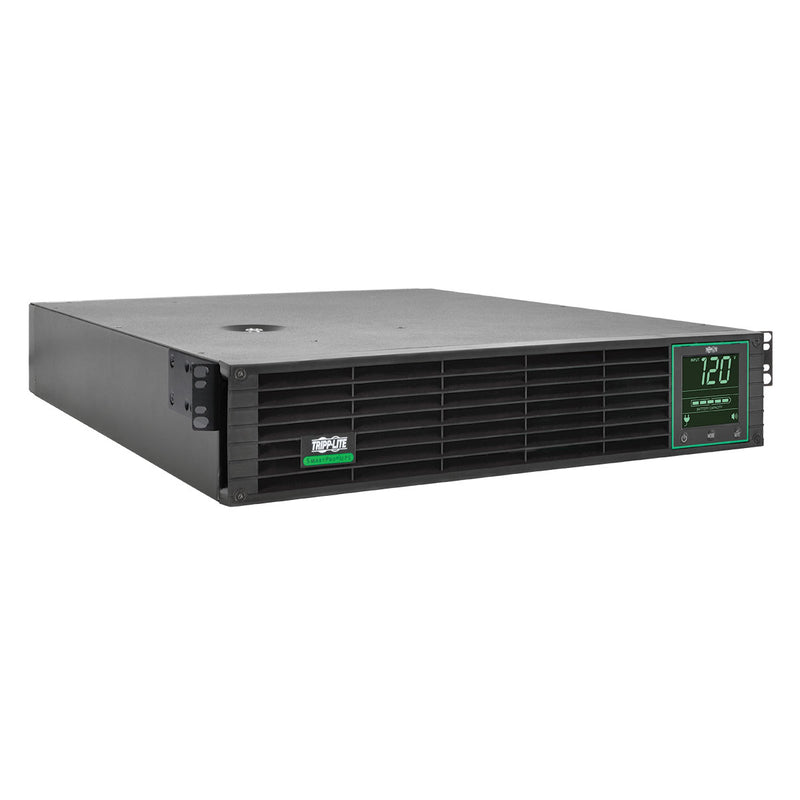

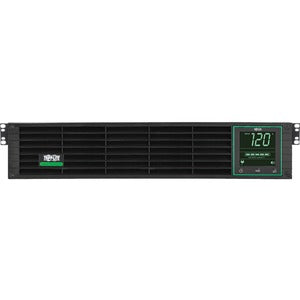

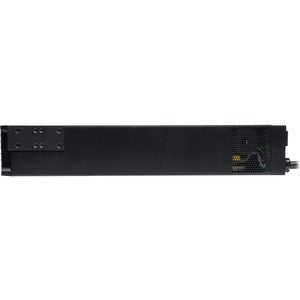

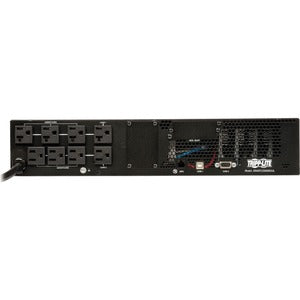

Tripp Lite SMART2200RM2UL 2200VA 1920W UPS Smart Lithium Ion LiFePO4 LCD 2URM

SKU: sil71684


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SMART2200RM2UL
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartPro
Product Model: SMART2200RM2UL
Product Name: SmartPro SMART2200RM2UL 2200VA UPS
Marketing Information: The SMART2200RM2UL SmartPro® 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART2200RM2UL switches to 2.2kVA/1.92kW battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
The innovative lithium iron phosphate (LiFePO4) internal battery more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100-percent capacity in less than two hours, making the SMART2200RM2UL an ideal backup in case of power outage. It provides 11.7 minutes of support at half load and 5.1 minutes at full load.
Featuring eight outlets and a 10-foot power cord with NEMA 5-20P input, the SMART2200RM2UL maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's PowerAlert® software (available via free download), the SMART2200RM2UL enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacles: 4 x NEMA 5-15/20R
Receptacles: 4 x NEMA 5-20
Protection Type: Under Voltage
Protection Type: Over Voltage
Emergency Power OFF: Yes
Transfer Time: 5 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Network Storage Device
Application/Usage: Server

Power Description

Load Capacity: 2200 VA/1920 W
Input Voltage: 120 V AC
Output Voltage: 110 V AC
Output Voltage: 115 V AC
Output Voltage: 120 V AC
Input Current: 16 A
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J
Circuit Breaker: Yes


Alarm: Remote Shutdown
Alarm: UPS StartUp
Alarm: Low Battery
Alarm: Overload
Alarm: Power Failure
Alarm: UPS Fault


Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 5.10 Minute
Backup/Run Time (Half Load): 11.70 Minute
Typical Battery Recharge Time: 1.40 Hour
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)
Sound Emission: 45 dB(A)
Thermal Dissipation: 393.59 W

Physical Characteristics

Height: 3.4"
Width: 19.4"
Depth: 17.3"
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 41.78 lb


Package Contents:

  • SmartPro SMART2200RM2UL 2200VA UPS
  • USB cable
  • DB9 cable
  • EPO cable
  • Rack-mounting hardware
  • Owner's manual

Certifications & Standards:

  • UL1778 (USA)
  • Tested to CSA (Canada)
  • Tested to NOM (Mexico)
  • Meets FCC Part 15 Category A (EMI)

Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 5 Year
