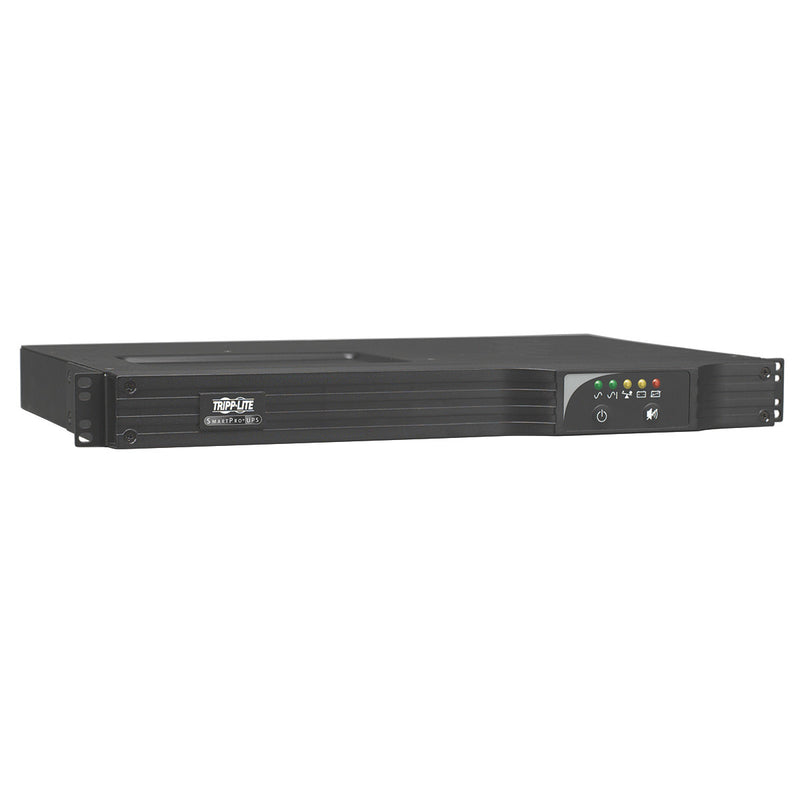

Tripp Lite SM1000RM1UTAA 1000VA 800W AVR 120V Pure Sine Wave USB DB9

General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SM1000RM1UTAA
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartPro
Product Model: SM1000RM1UTAA
Product Name: SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS
Marketing Information: The SM1000RM1UTAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SM1000RM1UTAA switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Two of the six NEMA 5-15R outlets may be switched off remotely to reboot equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment. The internal battery provides 14 minutes of support at half load (400W) and four minutes at full load (800W). Operating with a high 99% line mode efficiency, the SM1000RM1UTAA saves you money by meeting strict EPA guidelines.
Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. 450-joule AC surge suppression protects your equipment from harmful power surges. With Tripp Lite's PowerAlert® software, available via free download, the SM1000RM1UTAA enables safe unattended system shutdown and file saves in case of a prolonged power failure. Compatible with Tripp Lite UPS management card options, including WEBCARDLX.
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P

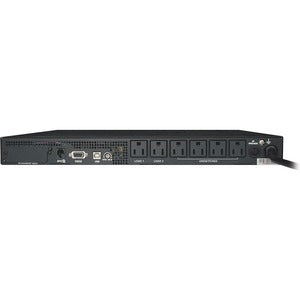

Receptacles: 6 x NEMA 5-15R
Protection Type: Black Out
Protection Type: Brownout
Protection Type: EMI / RFI
Protection Type: Surge
Protection Type: Under Voltage
Protection Type: Over Voltage
Emergency Power OFF: Yes
Cord Length: 10 ft

Power Description

Load Capacity: 1000 VA/800 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Current: 9 A
Waveform Type: Sine Wave
Surge Energy Rating: 450 J

Management

Alarm: Power Failure
Alarm: Low Battery
Alarm: Overload
Battery Management: User replaceable

Controls/Indicators

Status Indicators:

• Line power status
• Battery power status
• Overload status
• Voltage regulation status
• Battery low/replace status

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 1.7"
Width: 17.5"
Depth: 16.8"
Rack Height: 1U
Form Factor: Rack/Tower
Weight (Approximate): 32 lb

Miscellaneous

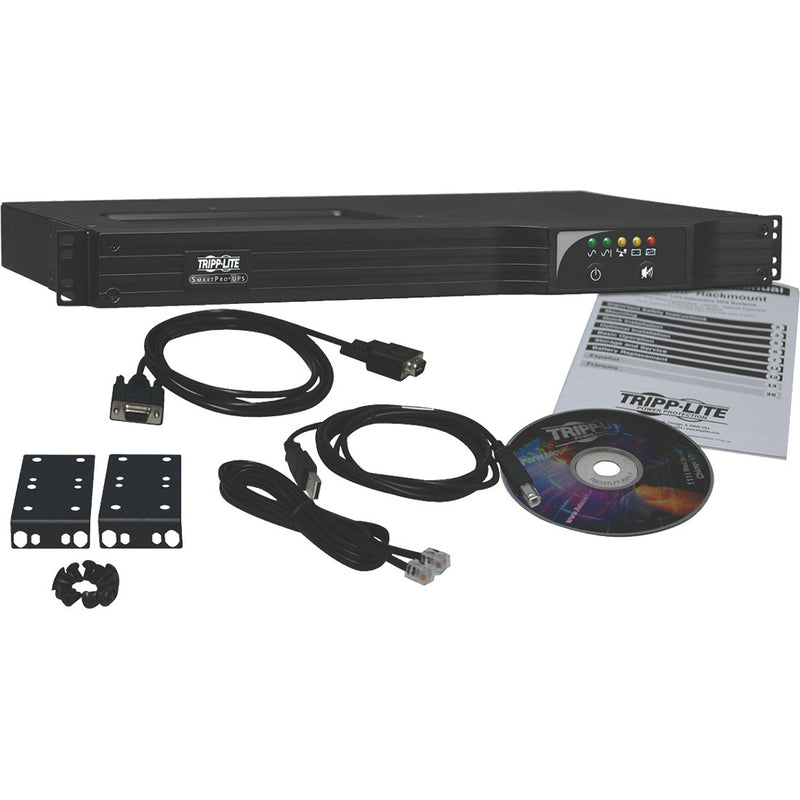

Package Contents:

• SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS
• Mounting hardware
• Cabling for USB & DB9 Monitoring and EPO Switching
• Instruction Manual

Certifications & Standards:

• TAA Compliant
• UL1778 (USA)
• CSA (Canada)
• NOM (Mexico)
• Meets FCC Part 15 Category A (EMI)

Software Included: PowerAlert Monitoring
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
