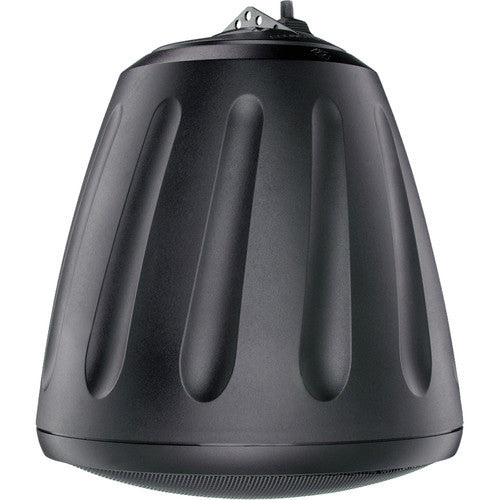

SoundTube RS600I-BK 6.5in Coaxial Open-Ceiling Speaker



One 6.5 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL-listed hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity.
Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), 2239 (hanging cable) and Mil-Spec 810 approved.
Frequency Response (+/- 3 dB): 85 Hz – 17 kHz
Frequency Response (+/- 10 dB): 58 Hz – 22 kHz
Sensitivity: 88.5 dB
Power Capacity RMS: 90 W
Max SPL dB @ 1 M: 108.0 dB
Nominal Impedance: 8 ohms
Transformer Options: 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct
Tweeter: BroadBeam®
Woofer: 6.5in Polypropylene
Connections: Four-pin Euroblock
Height: 363.5 mm (14.31 in.)
Diameter: 307.3 mm (12.10 in.)
Weight: 6.1 kg (13.5 lbs.)
Shipping Weight: 7.5 kg (16.5 lbs.)
Optional Accessories: Bracket for surface-mount applications (AC-RS-SM6), beam clamp (AC-BC-1), 10' split loom tubing (AC-SLT-10), 10' RSi hanging kit (AC-RS-HH-10), 20' hanging kit (AC-RS-HH-20), 50' hanging kit (AC-RS-HH-50), forged eye bolt (AC-FE1), snap link (AC-SL1)
Colors: Black / White / Custom
