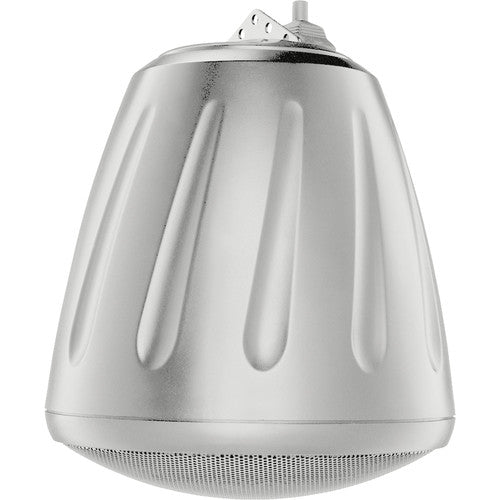

SoundTube RS500I-WH 5.25in Coaxial Open-Ceiling Speaker



One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Includes UL listed hanging hardware with cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euro-block connector and terminal weather boot.
Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking. Plated steel grille with protective powder-coated finish for lasting durability. Average senitivity 86.5 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY), CE and Milspec 810 approved.
Frequency Response (+/- 3 dB): 87 Hz – 22 kHz
Frequency Response (+/- 10 dB): 61 Hz – 22 kHz
Sensitivity: 86.5 dB
Power Capacity RMS: 75 W
Max SPL dB @ 1 M: 105.5 dB
Nominal Impedance: 8 ohms
Transformer Options: 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct
Tweeter: BroadBeam®
Woofer: 5.25in Polypropylene
Connections: Four-pin Euroblock
Height: 298.2 mm (9.68 in.)
Diameter: 245.9 mm (9.68 in.)
Weight: 4.3 kg (9.5 lbs)
Shipping Weight: 10 kg (22.0 lbs) Two Per Box
Optional Accessories: bracket for surface-mount applications (AC-RS-SM5), beam clamp (AC-BC-1), 10' split loom tubing (AC-SLT-10), 10' RSi hanging kit (AC-RS-HH-10), 20' hanging kit (AC-RS-HH-20), 50' hanging kit (AC-RS-HH-50), forged eye bolt (AC-FE1), snap link (AC-SL1)
Colors: Black / White / Custom
