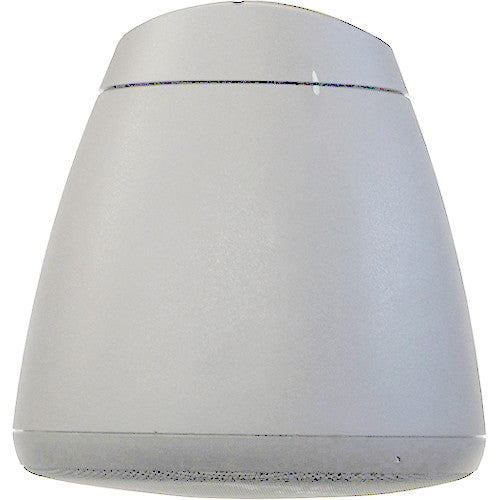

SoundTube RS42-EZ-WH 4in Open-Ceiling Speaker
$154.50
SOUNDTUBE RS42-EZ-WH
One 4 inch (102 mm) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency directivity. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. 16 ohm impedance for easy daisy chaining in low voltage systems.
Aluminum grille with protective powder coated finish. Built-in thermal fuse. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Unit ships in eco-friendly, recyclable packaging. UL 1480 UEAY and UL 2239 listed. Included accessories: hanging hardware, weather plug, cover plate, AC-RSEZ-HH-10, and AC-RSEZ-HH-10.
| Frequency Response (-3 dB): | 140 Hz – 22 kHz |
| Frequency Response (-10 dB): | 100 Hz – 22 kHz |
| Sensitivity: | 84.0 dB |
| Power Capacity RMS: | 20 W |
| Max SPL dB @ 1 M: | 100.0 dB |
| Nominal Impedance: | 16 ohm |
| Transformer Options: | 25 / 70.7 / 100 Volt option with a 16 Ohm direct |
| Tweeter: | 19mm (0.75in) Silk dome w/BroadBeam Ring™ |
| Woofer: | 102mm (4in) Polypropylene cone, butyl rubber surround |
| Connections: | 4 position ceramic terminal connector |
| Height: | 199.6 mm (7.86 in.) |
| Diameter: | 189.5 mm (7.46 in.) |
| Weight: | 1.8 kg (3.9 lbs.) |
| Shipping Weight: | 2.7 kg (6 lbs.) |
| Optional Accessory: | Beam clamp (AC-BC-1), 10′ split loom tubing (AC- SLT-10), 10′ hanging kit (AC-RSEZ-HH-10), 20′ hanging kit (AC-RSEZ-HH-20), 50′ hanging kit (AC-RSEZ-HH-50), forged eyebolt (AC-FE1), snap link (AC-SL1) |
| Colors: | Black / White, or Custom |
