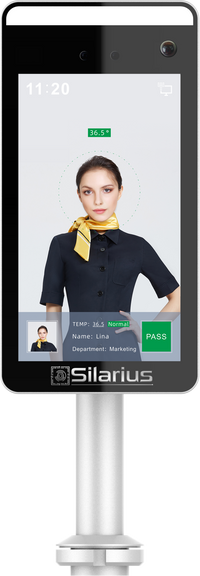

Silarius SIL-FRTEMP Temprature Thermal terminal + Table stand

$999.99

System
Main Processor: MX3520
Operating System: Embedded LINUX
RAM: DDR3 512MB
ROM: EMMC 8GB


Screen
Dimensions: 7 inch IPS HD LCD screen
Resolution: 600*1024


Camera
Type: 2MP camera
Sensor: 1/5" GC2145
Resolution: NIR 800*600 15fps
Lens: 2.4mm
Type Daily camera
Sensor 1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307
Resolution Color: 1920*1080 30fps
Lens: 4.5mm


Body temperature detection
Temperature range: 35℃-42℃
Temperature measuring distance: 0.5-1.3m, 0.75m is the best
Temperature measurement accuracy: ± 0.3℃


Face recognition
Detection Type: Mask detection only
Face recognition distance :0.5-1.5m
Face database capacity: Max support 30,000 faces
Face Posture: Vertical 58°-60°, horizontal 35°
Occlusion: Ordinary glasses and short fringe have no effect on recognition.
Expression: Under normal circumstances, slight expressions do not affect recognition.
Response Speed: About 200ms
Face exposure: Support
Local Storage: Support storage of 25,000 records
Recognition area :Full screen recognition
Upload Method: TCP, HTTP, MQTT


Network Functions
Network protocol: IPv4, TCP/IP, HTTP
Interface protocol :Private protocol
Security Mode: Authorized password
Event linkage: Voice broadcast,Abnormal event upload to the platform
System Upgrade: Support remote upgrade


Accessories
Supplementary light: IR light, LED white light
Identification Module /
Audio out: Built in Speaker support voice broadcast after successful recognition
Network Module /


Interface
Network Interface: RJ45 10M/100M Network Adaptation
Alarm Input /
Alarm Output: Support 1 channel
Relay Output: Support
RS485 interface: Support
Wiegand interface: Support Wiegand 26, 34 protocols
TF card slot /
HDMI /
Reset key: Support
Anti-disassembly switch /


General
Housing: Aluminum alloy, Ultra-white tempered glass panel, IP66
Operating Temperature: 10 ° C ~ 40° C
Working humidity: 10% -90% Non-condensing
Storage Temperature: -40 ° C ~ 70 ° C
Storage humidity: 5% -95% Non-condensing
Protection Level /
Power Supply: DC12V
Power dissipation: (maximum) ≤ 12 W
Dimensions (mm): 219 (W) * 111 (H) * 21.5 (T)
Bracket size (mm): φ27*189
Installation Method: Desktop installation/Floor installation/Gate machine installation/Column installation/Wall installation
