$2,190.00

The Shure MXWAPT2 2-Channel Access Point Transceiver with ANIUSB-MATRIX USB Audio Network Interface is bundled together to provide users of Shure's Microflex Wireless conferencing system with both a 2-channel wireless access point and a USB interface with matrix mixing for the system. The bundle allows two wireless microphones and a USB device to access the conference system.

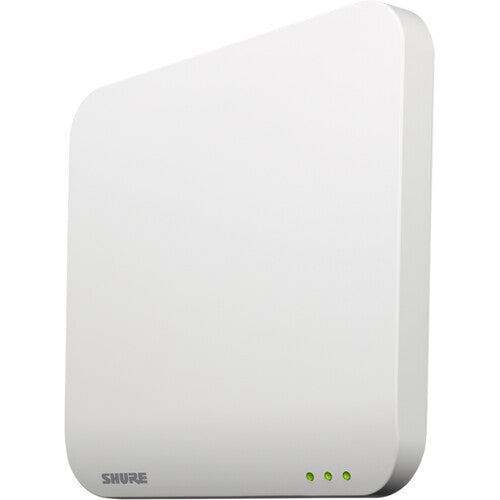

Shure MXWAPT2 2-Channel Access Point Transceiver

The MXWAPT2 from Shure is a two-channel access point transceiver that mounts to a wall or ceiling to manage encrypted, wireless audio connections with microphones. It can be used in meeting rooms and boardrooms when paired with Microflex wireless microphone systems and devices equipped with Dante digital networked audio (sold separately).

Featuring AES 256-bit encryption for secure transmission and bi-directional wireless capabilities, the transceiver is powered via a single Ethernet cable and is the hub of the audio signal flow. Also, the transceiver manages the RF stability of each microphone in the group. It includes a paint cover, a mounting plate, and a USB memory stick.

Easy Installation
Includes wall / ceiling mounting plate and connects to the system over a single Ethernet cable (PoE compatible)
Plenum-Rated
Meets rigorous fire safety test standards for installation above drop ceiling tiles
Scalable Configurations
Multiple units can be combined to support configurations of up to 40 compatible channels (80 in Europe and select countries)
Bi-Directional Wireless
Provides return channel audio to wireless transmitters and enables real-time remote control of all wireless microphone settings
Automated Frequency Coordination:
Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
Dante Digital Networked Audio
Transports low-latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
Encrypted Wireless
AES 256-bit encryption for secure transmission
Selectable Output Power
Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
Diagnostic LEDs
LEDs offer easy visual reference to system activity and indicate power, wireless connection, and network audio status

Shure ANIUSB-MATRIX USB Audio Network Interface

The ANIUSB-MATRIX USB Audio Network Interface from Shure is designed for audio/video conferencing installations in small and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack.

Connects 4 Dante audio inputs and 1 analog input to an A/V conferencing system or a PC-based videoconferencing application
Flexible signal routing and connectivity: analog audio (1 block in/1 block out) to room A/V conferencing system; USB (1 in/out) to connect to laptop or room PC
Power over Ethernet (PoE) eliminates the need for an outboard power supply
Compact form factor is easy to mount without equipment rack
