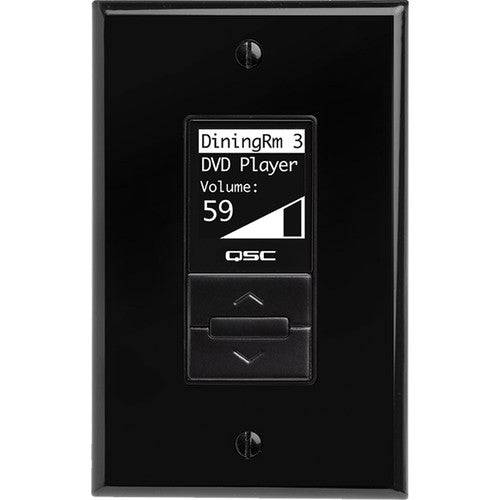

QSC MP-MFC Decora-Style Wall Controller for MP-M Series Mixers (Black) MPMFCNABK

QSC MP-MFC Decora-Style Wall Controller for MP-M Series Mixers (Black) MPMFCNABK

$375.00
Brand: QSCReviews
Available to order. Usually ships in 1–3 business days.
D Questions about this product? Daniel and the team reply fast, usually within minutes. Chat with us now or email us.
More information View images
Reviews

MP-MFC Controller - BLACK

Wall mount controller for MP-M Series mixers

The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer.  Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.

  • For use with the MP-M paging and music mixer/processor only
  • Control source select, scene recall, volume control
  • Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
  • Ability to daisy chain up to four MP-MFC controllers
  • Up to 250 m cable length (CAT5)
  • Up to eight MP-MFC controllers per MP-M Series mixer
  • Available in black or white
  • Available in NA and EU sizes
Model MP-MFC
Controls Three buttons (increment, decrement, and select)
Connectors 2x RJ45
Display 128 x 128 pixels, 27 (L) x 26 (W) mm viewing area
Available Colors Black, white
Connection Max Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length
Total:  Up to 8 controllers per MP-M Series mixer
Versions MP-MFC-NA-BK – North American version, black
MP-MFC-NA-WH – North American version, white
MP-MFC-EU-BK – European version, black
MP-MFC-EU-WH – European version, white
Dimensions (HWD) North American versions: 4.5-inch X 2.75-inch X 1.4-inch (11.4 cm X 7.0 cm X 3.5 cm)
European versions: 3.5-inch X 3.5-inch X 1.4-inch (8.9 cm X 8.9 cm X 3.6 cm)
Net Weight All Versions: 0.2 lb (0.1 kg)
