Product Overview
The Honeywell LTEMXA-TC2 is a bundled kit that includes a Honeywell LTEM-XA AT&T LTE Cat M1 Cellular Communicator and the latest PROM Chip upgrades for both the VISTA-15P and the VISTA-20P. This is great for Honeywell VISTA System users needing a new PROM Chip to support Total Connect 2.0.
In order for a VISTA-15P or VISTA-20P to be used with Total Connect 2.0, it must have a PROM Chip version of 9.12 or higher. If your 15P or 20P is running a lower PROM Chip, then buying this bundled kit is a great idea. This kit will save you money over buying a 15P PROM Chip or 20P PROM Chip and a new communicator all individually. For more information on how to properly identify and replace a PROM Chip, please see this FAQ. But if your 15P or 20P already has a PROM Chip of 9.12 or higher, then you are likely better off just buying a standalone communicator, without upgrading the PROM.
Being able to use the Total Connect 2.0 platform is crucial for getting the very most out of your system. This is a super convenient service that you can access from almost anywhere by using a web browser or an app on your phone. Once you have logged into your TC2 account, you can arm and disarm your connected system, check its current status, control any Z-Wave devices you have integrated, view the live feed for security cameras you have set up, and more.

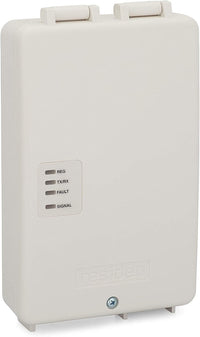

The Honeywell LTEM-XA Cellular Communicator included with this kit allows your Honeywell VISTA System to communicate with the Resideo AlarmNet Servers for monitoring service. The fact that this is a cellular communicator is very important, as it makes it highly unlikely that your alarm system will ever experience a disruption in service, provided that an adequate cellular connection is made. Not only that, but the LTEM-XA connects with the ultra-powerful AT&T LTE Cat M1 Network for optimal security and overall connectivity.
Since this is a cellular communicator, you will need an appropriate alarm monitoring plan in order to use it. Examples of compatible plans include the Gold and Platinum Level Plans from Alarm Grid. You can choose from our central station monitoring plans, where help can be automatically sent out during an alarm event, or a "Self-Monitoring" plan, where you must contact help yourself after being alerted to an alarm event via text and/or email. You may want to review this helpful post that outlines the Alarm Grid monitoring plans in greater detail.
Kit Includes
- Resideo LTEM-XA LTE Cat M1 Communicator for VISTA - AT&T
- Honeywell Home V15V20-TC2UPG VISTA Total Connect 2.0 Support Upgrade Chip Kit for VISTA-15P and VISTA-20P
Main Features
- LTEM-XA AT&T Communicator
- Latest PROM Chips for VISTA-15P and VISTA-20P Panels
- Great for Honeywell VISTA System users needing a new PROM Chip to support Total Connect 2.0
General Information
-
Honeywell is taking quality and reliability to the next level with the New equIP® range of indoor IP cameras. The Honeywell indoor TDN low-light IR minidome cameras offer outstanding picture clarity, hassle-free flexible system integration, and secure data transmission-and they look great too!
Superior Image Quality
- Full HD 1080p 25/30 fps image with a 1/2.8" 2 MP sensor, or full HD 4 MP 20 fps image with a 1/3" 4 MP sensor
- True WDR (120 dB) ensures glare-free images
- True Day/Night provides vivid colour images by day and clear black-and-white images at night with ICR
- Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.264 High Profile codec
-
Flexible Surveillance Solution
- 2.7-13.5 mm, F1.6, motorized focus/zoom lens
- H.265+, H.265, H.264 and MJPEG codec, triple stream support
- IR LEDs provide up to 20m (65') of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
- Smart IR technology provides even distribution of IR
- -30°C to 50°C (-22°F to 122°F) working temperature
- ONVIF Profile S, G and Q compliant
- Security features include individual signed certificates and data encryption
- Cameras can be retrofitted on many existing DVR/NVR installations without requiring additional storage
-
Easy to Install and Use
- Built-in PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 24 V AC/12 V DC inputs where PoE power is unavailable
- 12 VDC / 2W output
- Built-in microphone
- Remote configuration, motorized zoom adjustments and auto focus through web client or from the NVR
-
Onboard Video Storage
- Supports up to 128 GB microSDHC (Class 10) card for local video storage when network is interrupted. Card not included.
-
Main Features
- 1/2.7" 2 MP progressive scan imager or 1/3" 4 MP progressive scan imager
- 20m (65') IR distance, depending on scene reflectance
- True WDR: 120 dB
- Excellent low light performance with down to 0 lux BW (with IR LEDs on)
- Up to triple stream support
- 4 MP resolution at 20 fps, or 1080p at 25/30 fps
- 2.7-13.5 mm, F1.6, motorized focus and zoom lens
- Built-in PoE for simple cabling options; 12VDC/24VAC inputs are also available
- Corridor mode viewing capability
- Built-in microphone
