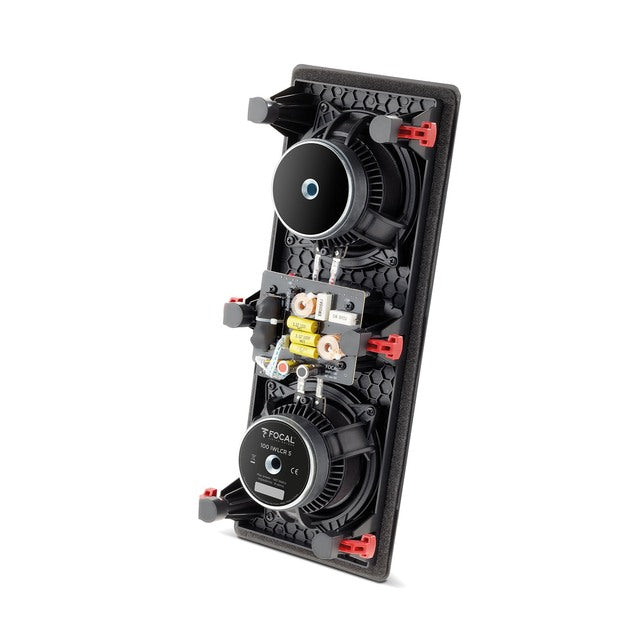

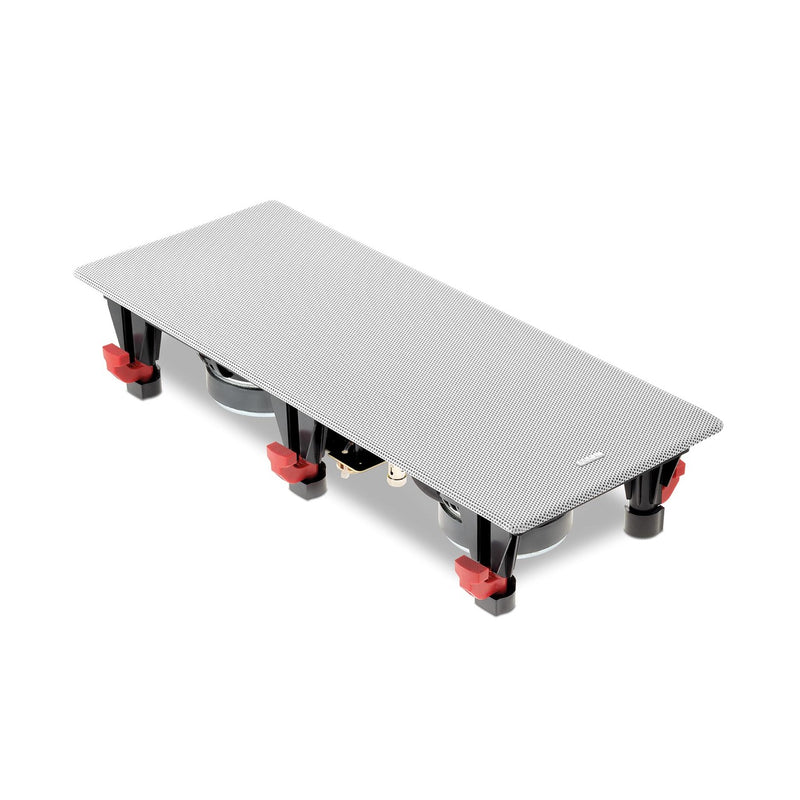

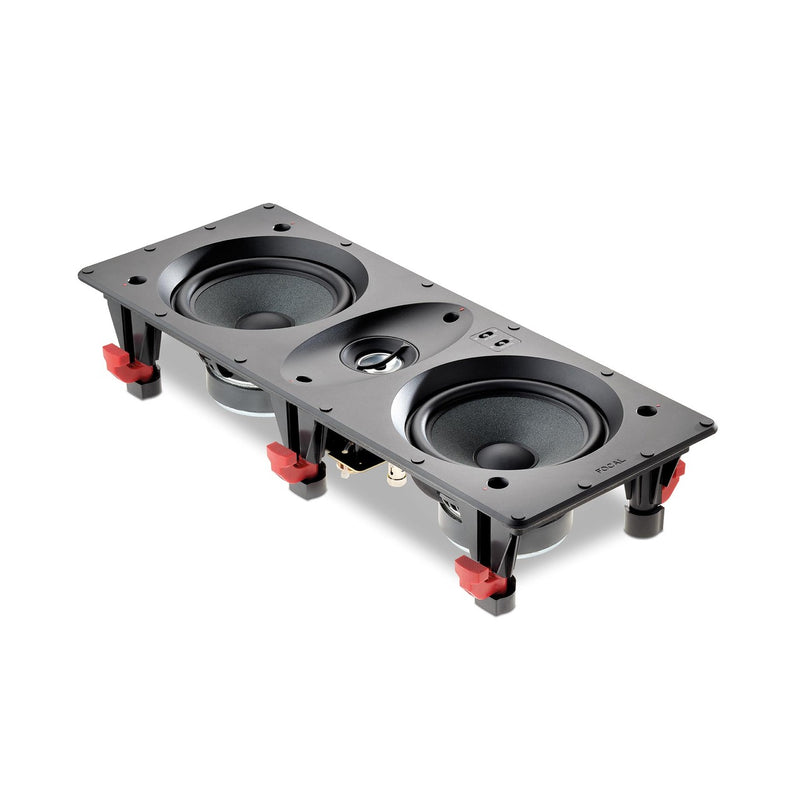

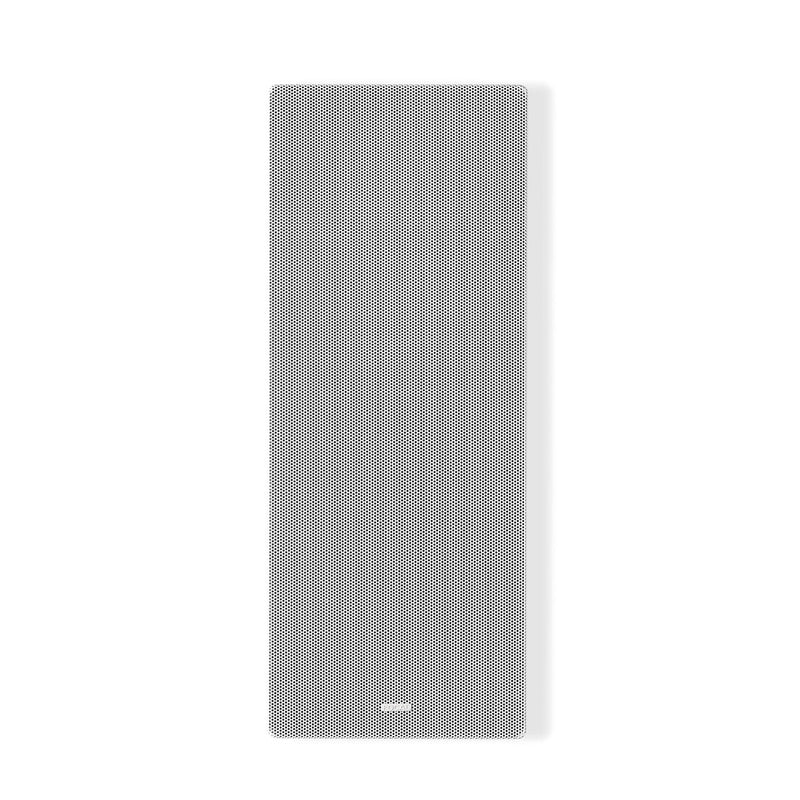

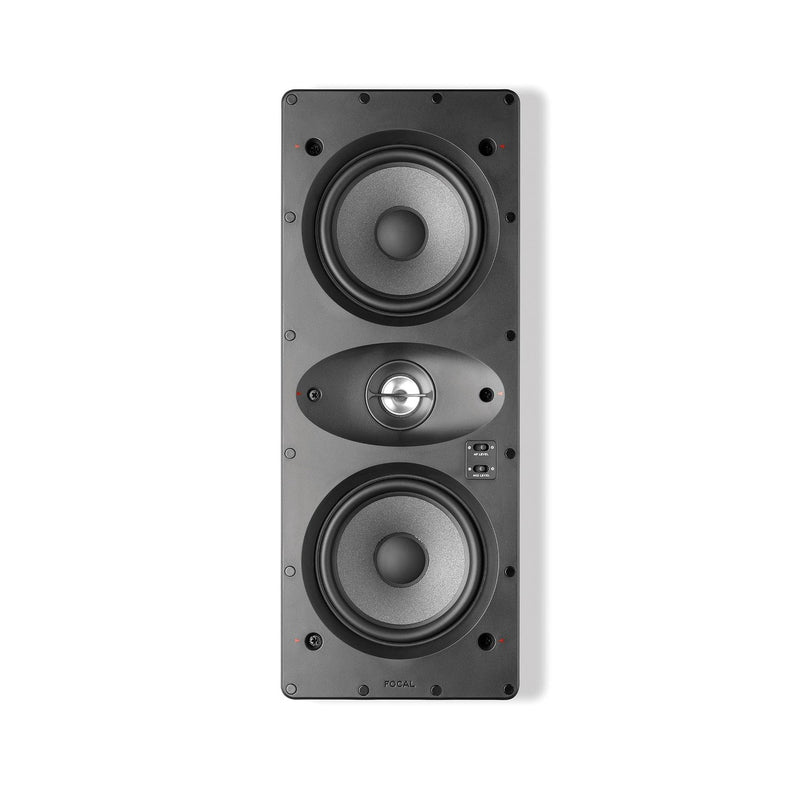

Focal F100IWLCR5 DUAL 5.25" INWALL LCR SPEAKER
Focal F100IWLCR5 In-wall 2-way D’appolito Loudspeakers
The Focal F100IWLCR5 In-Wall 2-Way D’appolito Loudspeakers which are dedicated to home audio can be highlighted for their acoustics performances and compact design. These products are aimed at small to medium sized rooms and for three types of use: distributed systems (hallways, living room), stereo systems (bedrooms, kitchens) and Home Cinema systems (in dedicated rooms or living rooms).
This in-wall loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. It is also equipped with a new Polyglass cone (51/8” – 13 cm). This LCR (Left, Centre, Right) loudspeaker can be used horizontally, as a center channel for a Home Cinema systems. It has a three position switch which allows choosing the left, center or right channels to adjust the levels according to the acoustic environment.
This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as one only piece, frameless square and circular front grilles. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.
The 100 Series brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.
Accessories required for installation are sold separately (pre-mounting kit and fire rated backcan box)
100IWLCR5 have adjustable tweeter level offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.
Tropicalisation is used on Polyglass membranes to allow an installation in humid environments, such as bathrooms for example.
Installation is an important criterion: the three mounting brackets with optimised grips ensure a quick and easy installation. The screw system prevents screws from falling out when dismantling the product. The installation time is reduced at its bare minimum. The 100 Series products have a shallow mounting depth which greatly facilitates installation.
- Product designed and developed in France by Focal
- Compact product with shallow mounting depth
- Possible to connect two loudspeakers to the same amplifier output
- Ready-to-paint grille
- Humidity resistant speaker.
- Magnetic grilles included with the product.
- 5 1/8" (13 cm) Polyglass cone.Natural midrange without colouration and rich bass.
- 360° tweeter rotation and 20° inclination. Improved sound spatialisation.
- 1" (25 mm) aluminum inverted dome tweeter. Improved sound dispersion
- Adjustable tweeter level (-3dB, 0dB, +3dB). Improved treble adjustment according to the acoustic environment.
- 6 mounting brackets with optimised grips to ensure quick and easy installation. Screw system that prevents screws from falling out when dismantling the product.
|Drivers||Drivers 5" (13cm) Polyglass Midbass, 1" (25mm) AI inverted dome Tweeter|
|Frequency response (+/-3dB)||55Hz-23kHz|
|Low frequency point (-6dB)||43Hz|
|Recommended amplifier power||25-120W|
|External dimensions (Ø/Depth)||17 21/64"x 6 13/16"x3 25/64" (440x173x86mm)|
|Cut-Out diameter||16 11/32"x 5 25/32 (415x147mm))|
|Depth from wall||3 17/64" (83mm))|
|Net weight (with front grille)||3.89lbs (2.90kg)|
|Packing dimensions (WxDxH)||9 5/8" x 9 5/8" x 6 5/16" (245x245x161mm)|
|Total weight (with packaging)||7.6lbs (3.45kg)|
