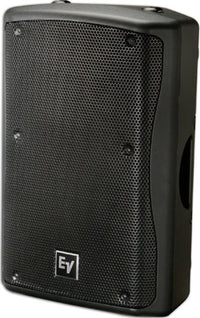

The Electro-Voice ZX3 offers an unprecedented level of lightweight 12" two-way loudspeaker performance for the widest variety of portable and installed applications. Featuring the new DVX3121 12" woofer and the ND2 neodymium compression driver, ZX3 continues the groundbreaking innovation of the Electro-Voice DVX woofer program, joining the ranks of EVs ZX series between the 8" ZX1 and the 15" ZX5.
When it comes to problem/solution versatility, ZX3 is truly in a class of its own. In addition to the highest performance drivers available, a complete range of optional accessories, including the CB-5 array kit, MB3 wall/ceiling mount bracket, HA-3 handle adapter for use with the VSA-1 strong arm mount, and TCA-1 truss clamp adapter, allow ZX3 to be easily and precisely configured in multiple box arrays, mounted on truss or tripods, deployed as monitors, or used as system mains with a subwoofer.
Housed in a stylish yet rugged injection molded enclosure, ZX3 shares the same functionality as the larger ZX5, with 90° x 50° or 60° x 60° horn dispersion patterns, 45° or 55° monitor angles, passive or bi-amp operation, and seven M8 rigging points. ZX3 is available in a weatherized version and in either black or white finish. The optional HDC-3 heavy duty stackable cover is also available.
Features
- DVX3121 12" LF Transducer with forced air cooling
- ND2 2" Voice Coil, 1" Exit Neodymium Compression Driver
- 60° x 60° Coverage Pattern
- 600W Continuous (2400W peak) power handling
- High sensitivity, 131 dB maximum SPL
- Adjustable monitor angle (45° or 55°)
- 2 Anchor plates for single stud fittings and 7integral suspension points
- Available in black or white
- Passive/biamp selectable
- Full line of accessories
Specs
- Frequency Response (-3dB): 58Hz-15kHz
- Frequency Range (-10dB): 48Hz-20kHz
- Rec. Hipass Frequency: 50Hz
- Axial Sensitivity: 97dB (1W/1m)
- Max. Calculated SPL: 131 dB
- Horizontal Coverage: 60°
- Vertical Coverage: 60°
- Power Handling (Passive): 600W continuous, 1200W program, 2400W peak
- LF Power Handling (Biamp): 500W continuous, 1000W program, 2000W peak
- HF Power Handling (Biamp): 40W continuous, 80W program, 160W peak
- LF Transducer: DVX3121, 12" driver
- HF Transducer: ND2, 1" exit Neodymium compression driver
- Crossover Frequency: 2kHz
- Nominal Impedance: 8 ohms
- Minimum Impedance: 6.2 ohms
- Connectors: (2) Neutrik Speakon NL4's
- Enclosure Material: Polypropylene structural foam
- Suspension: Enclosure has locations for 4 single-stud attachment plates and10 forged steel eye bolts - 2 on top, 2 on bottom, 2 onside, and 1 on rear of enclosure
- Grille: Polyester powder coated, 16GA Galvanized steel, with rotatable logo
- Dimensions (H x W x D): 24.14" x 15.64" x 14.26"
- Net Weight: 43.7 lbs
- Shipping Weight: 48.6 lbs
