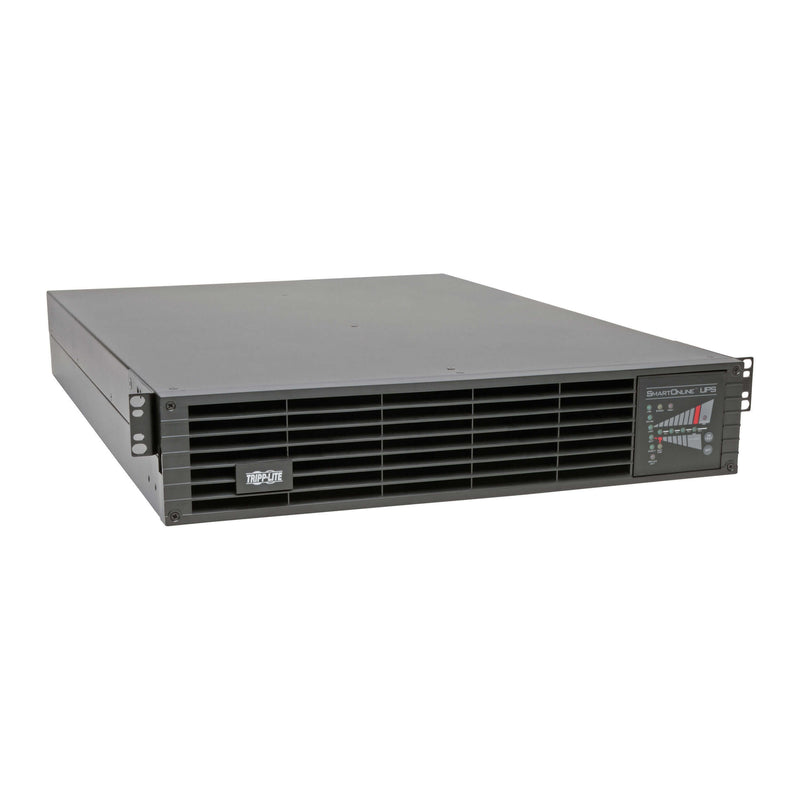

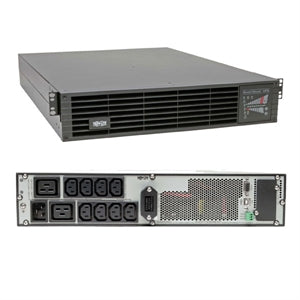

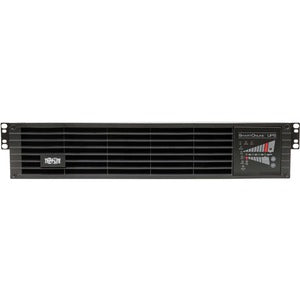

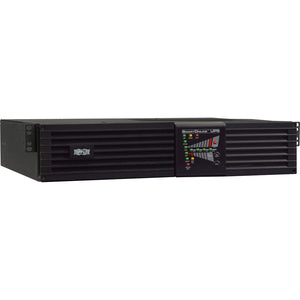

Tripp Lite SUINT3000RTXL2U UPS Smart Online 3000VA 2500W 208-240V

SKU: sil71690


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SUINT3000RTXL2U
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SUINT3000RTXL2U
Product Name: SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
Marketing Information:

3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.

Product Type: Dual Conversion Online UPS

Technical Information

Receptacles: 10
Bypass Switch: Automatic
Emergency Power OFF: Yes
Transfer Time: 0 ns

Power Description

Load Capacity: 3000 VA/2500 W
Input Voltage: 220 V AC
Output Voltage: 220 V AC
Output Voltage: 230 V AC
Output Voltage: 240 V AC
Output Voltage: 208 V AC
Input Current: 15 A


Network Management: SNMP Manageable


Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 6 Minute
Backup/Run Time (Half Load): 15 Minute
Typical Battery Recharge Time: 4.80 Hour
Hot Swappable: Yes

Physical Characteristics

Height: 3.5"
Width: 17.3"
Depth: 26"
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 78.30 lb


Package Contents:

  • SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
  • 4 Post Rackmount Installation Brackets
  • C19 to C20 Power Cable
  • PowerAlert Software CD
  • USB Cable
  • Serial Cable
  • Owner's Manual with Warranty Information

Additional Information:

Input Receptacle: C20

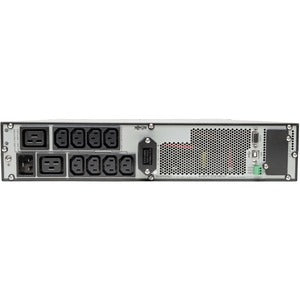

Output Receptacles:

  • 2 x C19
  • 8 x C13

Certifications & Standards:

  • UL1778
  • FCC Part 15 Category A (EMI)
  • TAA Compliant

Software Included: PowerAlert Software
Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 2 Year
