Tripp Lite SU5000RT4UTFTAA 5kVA 4500W UPS Smart 208 & 120V Rackmount 6URM TAA

SKU: sil71692


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SU5000RT4UTFTAA
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SU5000RT4UTFTAA
Product Name: SmartOnline SU5000RT4UTFTAA 5000VA Rack-mountable UPS
Marketing Information:


Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss

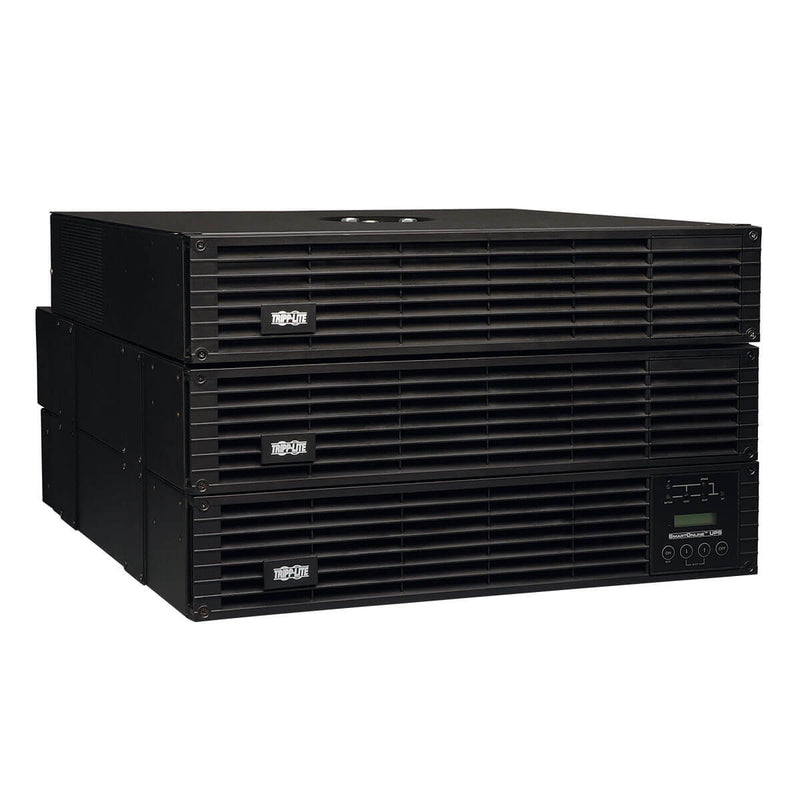

This TAA-compatible UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Featuring a 4500W capacity, high 0.9 power factor, true on-line operation with pure sine wave output and zero transfer time to battery, the SmartOnline® SU5000RT4UTFTAA provides the highest level of battery backup and AC power protection for critical server, network and telecom equipment. The 6U form factor includes a 4U online double-conversion UPS and a 2U step-down isolation transformer, which allows this 208 to 120V UPS system to support both high- and low-voltage equipment.

Reliable Battery Backup with Expandable Runtime Options

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 11 minutes of support at half load and 3.5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. For mission-critical applications demanding continuous uptime, the 208 to 120V UPS can provide expandable runtime with optional external battery packs, such as Tripp Lite's field-replaceable, hot-swappable BP192V12RT3UTAA (sold separately). A battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries.

Economy Mode Helps the Environment and Your Cash Flow

Operating with a high 96% efficiency in optional economy mode, the SU5000RT4UTFTAA significantly reduces BTU heat output, cooling requirements and operating energy costs.

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

Front-panel LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status at a glance. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration.

Surge Protection and EMI/RFI Line Noise Filtering Keep Your Equipment Safe

Network-grade surge protection instantaneously safeguards connected components from the harmful effects of power surges. Various electrical and radio sources can also cause disruptive interference on the AC line, which can result in incremental hardware damage, data corruption and performance problems. By providing regulated, filtered, pure sine wave AC output, the SU5000RT4UTFTAA completely isolates connected equipment from disruptive line noise.

Optional WEBCARDLX Network Interface Offers 24/7 Access

An accessory slot accommodates the optional Java-free HTML5-based WEBCARDLX interface (sold separately), which enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.

Advanced Communications Ports

USB and DB9 ports (cables are included) enable data-saving unattended shutdown of connected systems when used with Tripp Lite's free downloadable PowerAlert® software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions.

Product Type: Dual Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA L6-30P

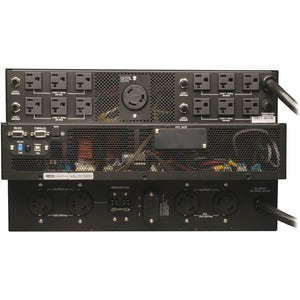

Receptacles: 12 x NEMA 5-15/20R
Receptacles: 2 x NEMA L6-20R
Receptacles: 2 x NEMA L6-30R
Transfer Time: 0 ns
Phase: Single Phase

Power Description

Load Capacity: 5000 VA/4500 W
Input Voltage: 230 V AC
Output Voltage: 120 V AC
Output Voltage: 208 V AC
Waveform Type: Pure Sine Wave

Battery Information

Backup/Run Time (Full Load): 3.50 Minute
Typical Battery Recharge Time: 6 Hour
Hot Swappable: Yes

Physical Characteristics

Height: 6.9"
Width: 17.5"
Depth: 20.7"
Rack Height: 6U
Form Factor: Rack-mountable
Weight (Approximate): 114 lb


Package Contents:

  • SmartOnline SU5000RT4UTFTAA 5000VA Rack-mountable UPS
  • SU5000XFMR2UTAA Step-Down Isolation Transformer
  • USB Cable
  • DB9 Cable
  • EPO Cable
  • Rack-Mounting Hardware
  • Owner's Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes


Limited Warranty: 2 Year
