Tripp Lite SMART5000TEL3U 5000VA 3750W AVR 208V Pure Sign Wave USB DB9

SKU: sil71639


General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: SMART5000TEL3U
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: SmartPro
Product Model: SMART5000TEL3U

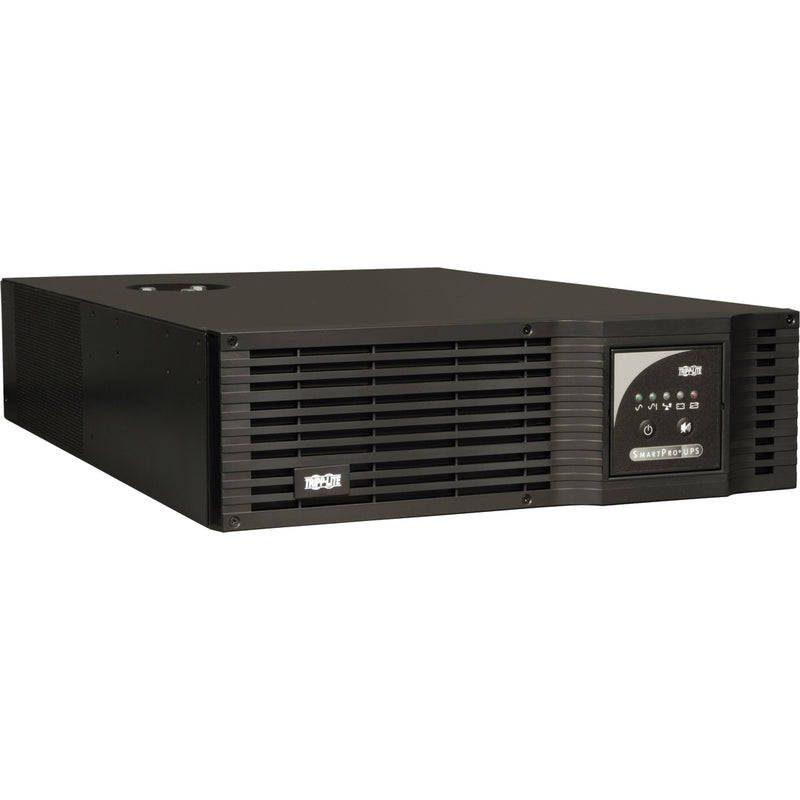

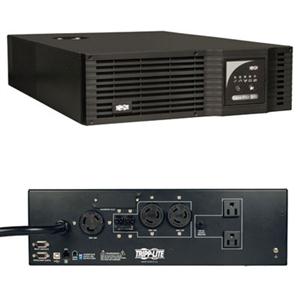

Product Name: SmartPro SMART5000TEL3U 5000VA Tower/Rack-mountable UPS
Marketing Information: Tripp Lite's SMART5000TEL3U intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and surges in a compact rackmount housing. Completely self-contained UPS system occupies only 3 rack spaces (3U) in a standard 19 inch rack, making this model one of the smallest 5kVA UPS systems available. Included accessories support mounting 4 post rack enclosures. Large capacity 5000 VA/3750 watt UPS system accepts raw AC input, adjusting output to regulated 208V levels. One pair of 120V outlets support up to 600VA monitors and other low voltage accessories. Includes slot for internal Network Management Card option. Includes USB and 2 DB9 monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Five outlets (two L6-20R, one L6-30R and two 5-15R) allow the connection of high current 20 and 30 amp 208V connectors and up to two 120V devices (max 600VA at 120V).
Product Type: Line-interactive UPS

Technical Information

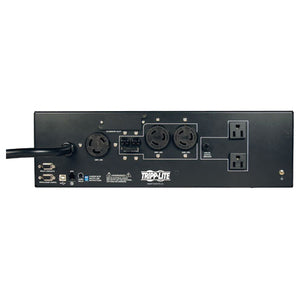

Plug/Connector Type: NEMA L6-30P
Receptacles: 1 x NEMA L6-30R
Receptacles: 2 x NEMA 5-15R
Receptacles: 2 x NEMA L6-20R
Emergency Power OFF: Yes
Transfer Time: 8 ms

Power Description

Load Capacity: 5000 VA/3750 W
Input Voltage: 208 V AC
Output Voltage: 208 V AC
Input Current: 24 A


Network Management: SNMP Manageable


Modem (RJ-11): Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 10 Minute
Backup/Run Time (Half Load): 24 Minute
Typical Battery Recharge Time: 4 Hour
Hot Swappable: Yes

Physical Characteristics

Height: 5.3"
Width: 17.5"
Depth: 25"
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 143.30 lb


Package Contents:

  • Smart Pro 5000TEL3U UPS
  • SMART5000TEL3U UPS System
  • PowerAlert Software and cabling
  • Mounting hardware
  • Warranty information
  • Instruction manual

Additional Information:

  • Ideal in rackmount or tower installations for centralized UPS protection of critical 208V equipment in server rooms, internetworking closets and telecommunications systems. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems

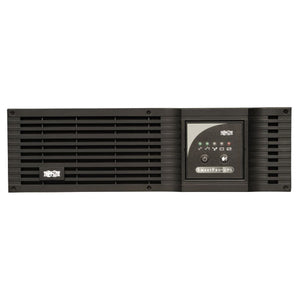

  • Switches: Includes 2 front panel mounted push button switches for system enable, self-test and alarm cancel functions

Certifications & Standards: UL1778 (USA), CSA (Canada), FCC Class A (Emissions)
Software Included: PowerAlert Software


Limited Warranty: 2 Year
