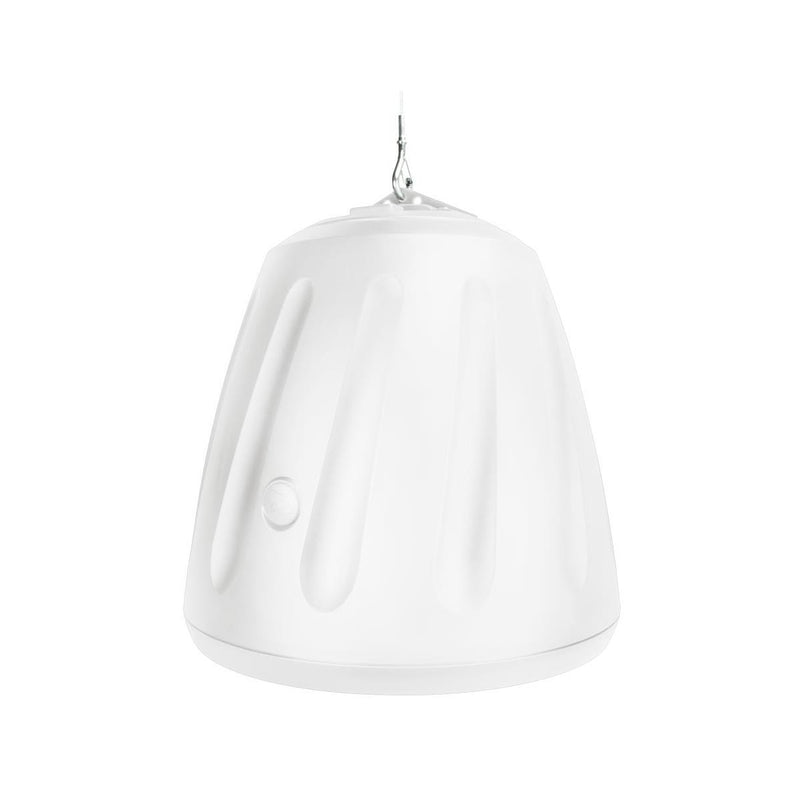

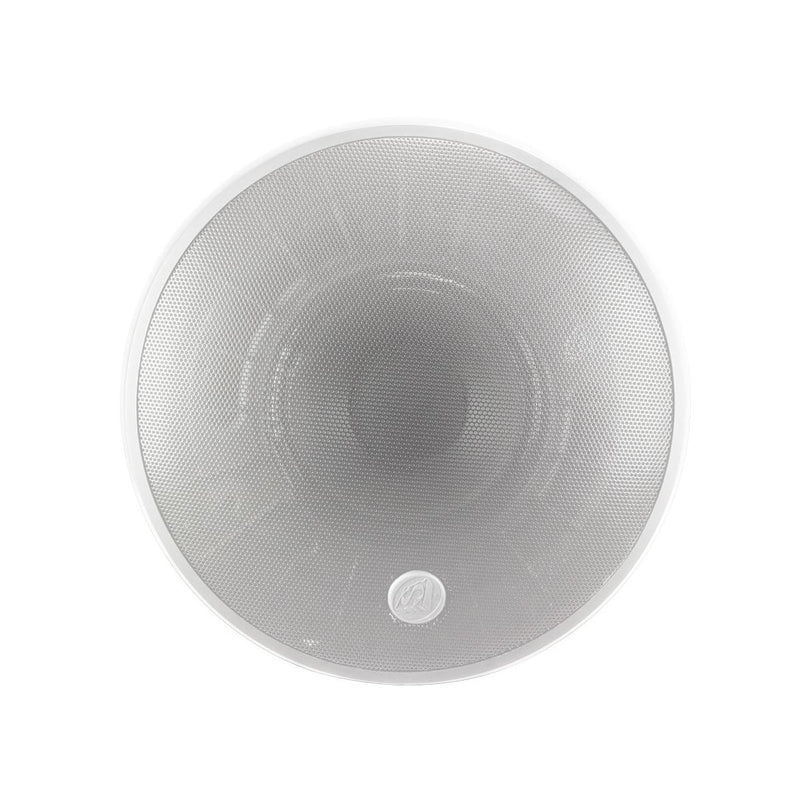

SoundTube HP129A-WH 12in High Power Coaxial Open-Ceiling Speaker
$773.99
SOUNDTUBE HP129A-WH
Patented BroadBeamHP® waveguide technology providing smooth response and maximum SPL across the audio spectrum. One 12 inch (305 mm) treated fiber cone with a treated cloth surround and one 1.375 inch (35 mm) Mylar compression driver with waveguide. Ported enclosure for added bass response (down to 73 Hz, – 10 dB). High-SPL, high-efficiency system for the sound reinforcement and PA markets.
Easy-access, five-position tap switch for 25/70.7/100-volt applications with transformer bypass position. Reduced amplification costs and maximum efficiency (97 dB sensitivity), with 8-ohm impedance. UL 1480 (UEAY) and 2239 (hanging cable) approved.
Included accessories:
- Hanging hardware
- Euroblock connector
- Terminal weather boot
| Frequency Response (-3 dB): | 118 Hz – 16 kHz |
| Frequency Response (-10 dB): | 73 Hz – 19 kHz |
| Sensitivity: | 97.0 dB |
| Power Capacity RMS: | 150 W |
| Max SPL dB @ 1 M: | 119.0 dB |
| Nominal Impedance: | 8 ohm |
| Transformer Options: | 25 / 70.7 / 100 Volt option with a 8 Ohm direct |
| Tweeter: | 1.375 inch Mylar compression driver w/ waveguide |
| Woofer: | 12 inch treated fiber cone, treated cloth surround |
| Connections: | Four-pin Euroblock |
| Height: | 452.1 mm (17.8 in.) |
| Diameter: | 457.2 mm (18.0 in.) |
| Weight: | 16.4 kg (36.0 lb) |
| Shipping Weight: | 18.9 kg (41.5 lb) |
| Optional Accessory: | bracket for surface-mount applications (AC-RS-SM129), beam clamp (AC-BC-1), 10′ split loom tubing (AC-SLT-10), 10′ RSi hanging kit (AC-HP-HD-10), 20′ hanging kit (AC-HP-HD-20), 50′ hanging kit (AC-HP-HD-50), forged eye bolt (AC-FE1), snap link (AC-SL1) |
| Colors: | Black or White |
