KICKER 46CSS684 6X8" COMPONENT SYSTEM

$165.00

CS Series CSS68

CS-Series 6x8-inch Component Speakers are the perfect factory upgrade when you have a separate woofer and tweeter.

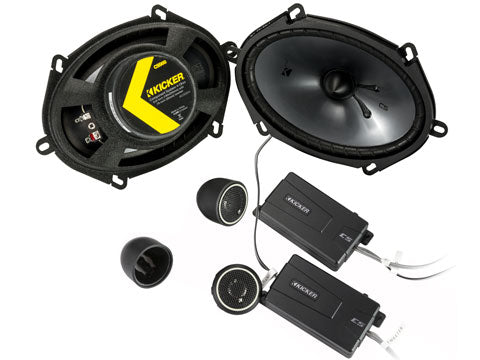

CS-Series components include separate titanium tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The result is precise control with stunning musical realism. Use the flush, angled or surface-mount tweeter pods to perfect your imaging with a sophisticated new look.

These CS-Series speakers work best with 75 watts of recommended power.

Product highlights:

  • Fits nearly every car made

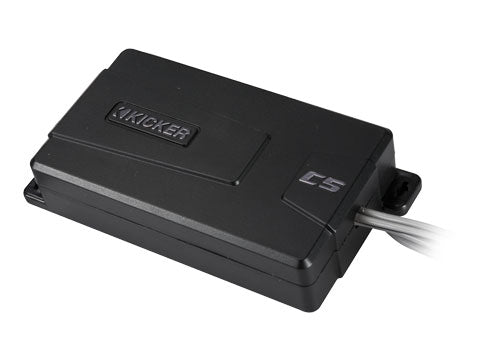

  • 12dB crossovers with a smaller footprint for easier installation
  • Three-position tweeter switch for dialing in your highs
  • EVC™ (Extended Voice Coil) technology help deliver remarkable bass response
  • Titanium tweeter construction and neodymium magnets to reveal subtle details
  • UV-treated poly-foam surround assists with precise linear excursion
  • Phase plugs in the woofer cones eliminate any distortion
  • Steel mesh grilles protect your drivers

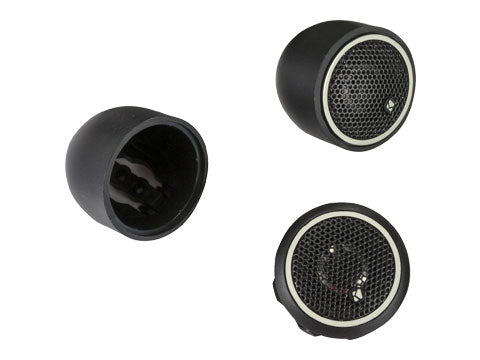

  • Three tweeter mounting options including flush, angled and surface pods
Specifications
Woofer Size | in [mm]
6x8 [160x200]
Tweeter Size | in [mm]
3/4 [20]
Dome Material
Titanium
Peak Power (watts, per ANSI/CTA-2031-A)
225
Recommended Amplifier Power (watts RMS)
75
Effective Frequency Range | Hz
40-21k
Woofer Mounting Hole Diameter | in [mm]
5 x 7 3/16 [126x182]



Woofer Bottom Mount Depth | in [mm]
2 3/16 [56]
Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40]
Flush Mount Tweeter Depth | in [mm]
9/16 [14.5]
High Pass | dB, at Frequency | Hz
12, 4000
Low Pass | dB, at Frequency | Hz
12, 4000
High Frequency Output Attenuation | dB
0, 3, & 6
Bolt-Thru Grilles
No
