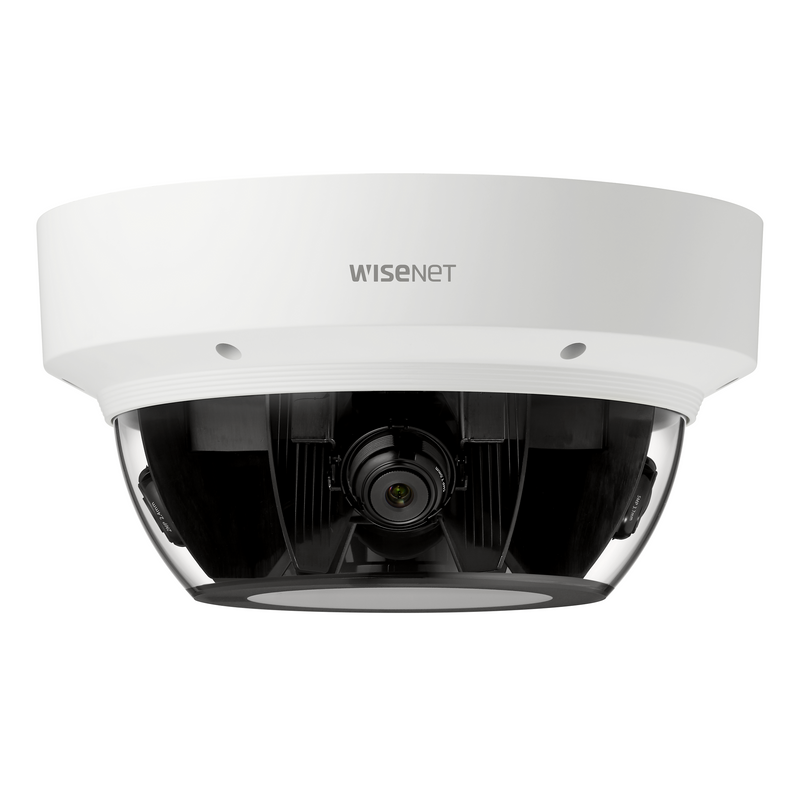

Hanwha Techwin WiseNet PNM-9002VQ 2MP/5MP x 4CH Multi-directional Camera

$1,019

• Exchangeable 4ea x 2MP / 5MP lens modules
• 8MP to 20MP resolution
(depend on the combination of lens modules)
• Max. 60fps@2MP (H.265 / H.264)
• WDR 150dB (2MP), 120dB (5MP)
• 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream Ⅱ
• IP66, IK10
• PoE+



360° monitoring with 4CH interchangeable lens module
PNM-9002VQ allows users to freely interchange lens modules between 2MP and 5MP according to the required direction and FoV in various installation environments. With just 1 camera, users can monitor multi directions, saving the cost.
  • Video
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
    Lens
    Optional Lens SLA-2M2400Q(2MP 2.4mm)
    SLA-2M2800Q(2MP 2.8mm)
    SLA-2M3600Q(2MP 3.6mm)
    SLA-2M6000Q(2MP 6.0mm)
    SLA-5M3700Q(5MP 3.7mm)
    SLA-5M4600Q(5MP 4.6mm)
    SLA-5M7000Q(5MP 7.0mm)
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(Electrical)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Directional detection, Face detection, Fog detection, Motion detection,
    Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
    Alarm Triggers Analytics, Network disconnect
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC recording at event triggers
    Network
    Ethernet Metal shielded RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP,
    FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/T
    SUNAPI(HTTP API)
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
    Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
    Memory 3GB RAM, 768MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10
    Input Voltage PoE+(IEEE802.3at, Class4)
    Power Consumption Max 25.5W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product dimensions / weight Ø253mmx130mm, 3000g
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin.
