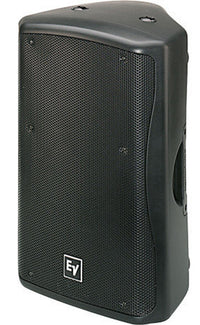

Electro-Voice ZX5-60B 15in. 600-Watt 2-Way Passive Loudspeaker

The Electro-Voice ZX5-60B is a 15" two-way 600 watt full-range passive loudspeaker that features a 60º x 60º dispersion pattern.

Features:

• Versatile performance for mains, fills, or monitors
• DVX3150A woofer with forced-air cooling
• 2-inch ND2 titanium/neodymium HF driver
• Switchable bi-amp or passive crossover operation
• 60º x 60º coverage horn
• High sensitivity, 132 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• High impact polypropylene enclosure
• Wedge shape for monitors at 45º or 55º
• Up to five anchor-plate attachments
• M8 mounting inserts (10)
• Integrated handle

Specs:

• Chassis Size: 15" (381 mm)
• Color: Black
• Input Connections: Parallel Neutrik NL4
• Speaker Type: Full-range, Mid-High, Two-Way, Wedges
• Frequency Response (-3 dB): 58 Hz - 18 kHz
• Frequency Response (-10 dB): 39 Hz - 20 kHz
• Internal Crossover: Switchable biamp or passive crossover
• Recommended High-Pass Frequency: 36 Hz
• Sensitivity 1 W/1 m: 98 dB
• Max. SPL/1m (calc): 132 dB
• Coverage (Nominal -6 dB) H: 90/60°
• Coverage (Nominal -6 dB) V: 50/60°
• System Power Handling (Continuous/Program/Peak): 600//2400 Watts
• LF Transducer: 15-inch DVX3150A
• LF Power Handling: 500 Watts
• HF Power Handling: 40 Watts
• LF Nominal Impedance: 8 ohms
• HF Transducer: 2-inch ND2
• HF Nominal Impedance: 8 ohms
• Crossover Frequency: 1500 Hz
• Nominal Impedance (Passive): 8 ohms
• Minimum Impedance: 6.5 ohms
• Enclosure Material: High Impact Polystyrene
• Flying: Yes
• Outdoor: Yes
• Grill: Polyester Powder Coated, 18GA Galvanized Steel
• Height: 27.24" (692 mm)
• Width: 17.56" (446 mm)
• Depth: 16.18" (411 mm)
• Weight (Net): 48.94 lbs (22.2 kg)
