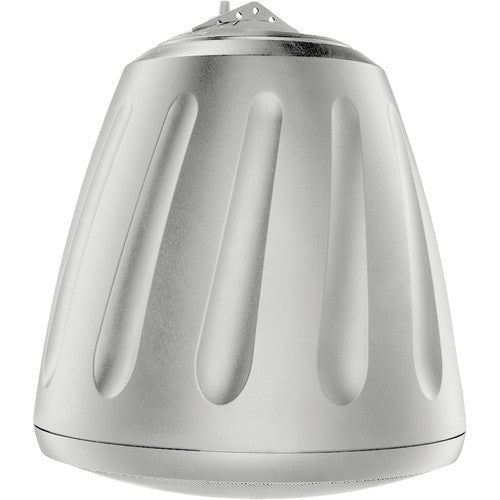

SoundTube RS1001I-II-T-WH 10in Coaxial Open-Ceiling/Surface Mount Subwoofer



One 10 inch polypropylene cone with a butyl rubber surround attached to a reinforced baffle. Baffle-mounted, flared and tuned ports for maximum efficiency and frequency response. High-output and maximum efficiency with an accentuated 70 Hz peak to maximize listener’s low-frequency experience.
150-watt, low insertion-loss transformer with an easy-access, five-position tap switch for 25-, 70.7-, 100-volt and transformer bypass positions. Includes UL listed hanging hardware with high-quality cables and integrated SpeedClamp™ self-locking wire clamp for fast, easy and secure installation. UL 1480 (UEAY) and CE-approved. Hanging hardware is UL 2239-approved.
Included accessories:
  • Hanging hardware
  • Euroblock connector
  • Terminal weather boot
Frequency Response (+/- 3 dB): 53 Hz – 175 Hz
Frequency Response (+/- 10 dB): 38 Hz – 450 Hz
Sensitivity: 83.0 dB
Power Capacity RMS: 150 W
Max SPL dB @ 1 M: 105.0 dB
Nominal Impedance: 4 ohms
Transformer Options: 25 / 70.7 / 100 Volt with voice coil / 8 Ohm direct
Woofer: 10″ Polypropylene
Connections: Four-pin Euroblock
Height: 437.6 mm (17.23 in.)
Diameter: 376.4 mm (14.82 in.)
Weight: 12.3 kg (27.0 lbs)
Shipping Weight: 14.8 kg (32.5 lbs)
Optional Accessories: Bracket for surface-mount applications (AC-RS-SM8), beam clamp (AC-BC-1), 10′ split loom tubing (AC-SLT-10), 10′ RSi hanging kit (AC-RS-HH-10), 20′ hanging kit (AC-RS-HH-20), 50′ hanging kit (AC-RS-HH-50), forged eye bolt (AC-FE1), snap link (AC-SL1)
Colors: Black or White
