General Information
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: US-16-150W
Manufacturer Website Address: www.ubnt.com
Brand Name: Ubiquiti
Product Line: UniFi
Product Model: US-16-150W

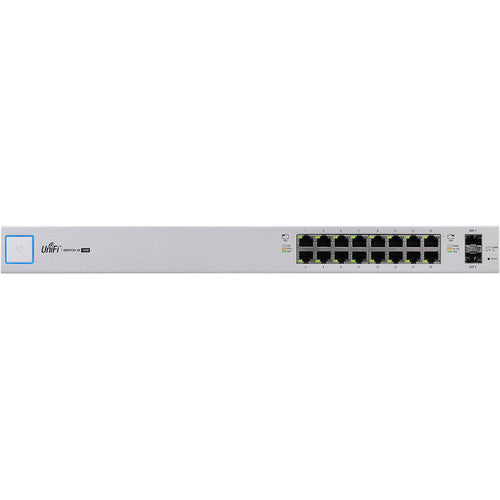

Product Name: UniFi US-16-150W Ethernet Switch
Marketing Information: Managed PoE+ Gigabit Switch with SFP
The UniFi® Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 16 x Gigabit Ethernet Network
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T
Network Technology: 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor: Rack-mountable
Form Factor: Wall Mountable
Form Factor: Desktop
Miscellaneous
Package Contents:
- UniFi US-16-150W Ethernet Switch
- Rack-Mountable or Wall-Mountable with Rack-Mount Brackets
Environmentally Friendly: Yes
Environmental Certification: WEEE
