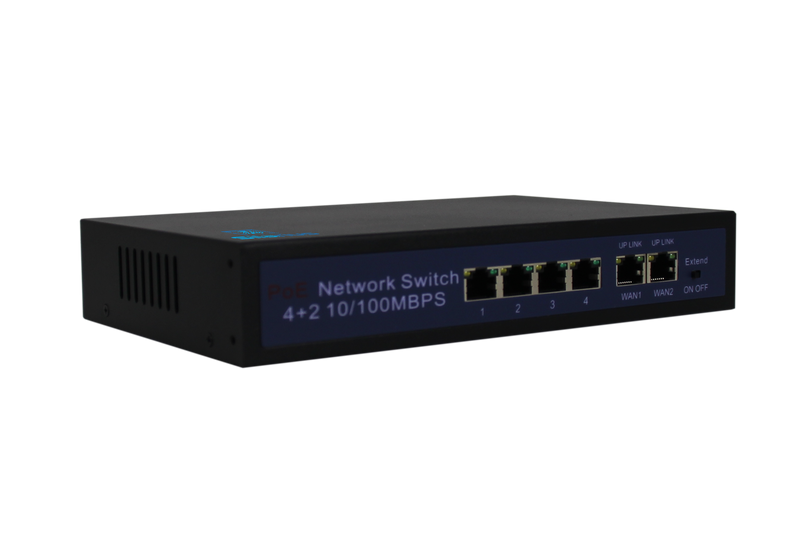

Silarius SIL-SW4POE 6 Ports POE switch with 4/100MB ports and 2/100MB Ports uplinks - 60W POE


Model HT412

Power Adapter Voltage Input:110‐240V/AC 50‐60Hz
The maximum power supply machine 60W

Protection level
Mould +‐4KV
Differential mode +‐1KV

Network Connector
Network Port 1~4 port :10/100Mbps PoE Ethernet LAN port
WAN1/WAN2 port:10/100Mbps Ethernet WAN port

Transmission Distance
Extend switch is default OFF, state(1~4 port):100m
Extend switch is ON, state:(1~4 port:): 200m

WAN1/2 port: 100m
Transmission Medium Cat5/5e/6 standard network cable

IEEE802.3/10BASE‐T Ethernet
IEEE802.3u/100BASE‐TX Ethernet
IEEE802.3x Flow Control, IEEE802.3af
Maximum Frame Size: 1536 Bytes
MAC address list: 2K
Backplane bandwidth: 1Gbps
PoE Standard: IEEE802.3af

Power Over Ethernet
PoE Power Supply Type: End‐Span(4/5+;7/8‐)
PoE Power Consumption: af,at Adaptive (every port)
LED Status Indicator: PoE Ethernet
When the PoE power supply is used, 1‐4 LEDs are green
When accessing Ethernet, ports 1‐4 are yellow

Working temperature: 0℃~55℃
Storage temperature: ‐40℃~70℃
Working humidity: 10%‐90% non‐condensing
Storage humidity: 5%‐95% non‐condensing

Dimension: (L x W x H) mm 220*140*40
Material: SECC
Color: Dark grey
Stability: MTBF >30000h
