$4,589.00

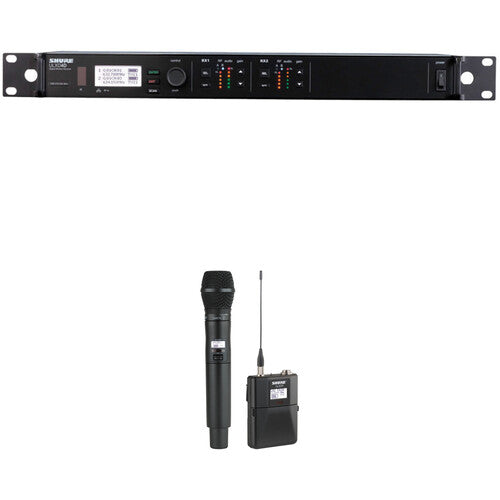

The ULXD124D/SM87 Dual Channel Combo Wireless System from Shure includes the ULXD2 handheld transmitter with SM87A cartridge, the ULXD1 wireless bodypack transmitter and the ULXD4D dual channel digital receiver. When completed with the addition of a compatible Shure lavalier microphone, headset microphone or instrument cable this set can provide wireless miking for up to two people simultaneously for a multitude of public speaking, ENG and live music applications.

Designed for use on stage, the ULXD2 handheld transmitter is fitted with a sensitive yet directional SM87A condenser microphone cartridge that features a supercardioid polar pattern. The ULXD1 pocket transmitter, on the other hand, can be paired with a number of Shure lavalier, clip-on instrument and headset mics that come in a variety of different polar patterns. It can also pair with the WA302 instrument cable for wireless guitar and bass. The ULXD2 and the ULXD1 are both housed in aluminum bodies that are designed to be rugged yet lightweight. Each run on either two AA batteries or on the optional Shure SB900 rechargeable battery pack. Each feature external charging contacts for use with the optional SBC200 dual docking charger and also features backlit LCD displays for visibility onstage. In addition, both the ULXD2 and the ULXD1 feature a lock button to prevent settings from being changed while you are performing.

The ULXD4D dual receiver delivers 24-bit/48 kHz digital audio and is capable of supporting both transmitters simultaneously. Housed in an all-metal chassis, it can be installed into a single rack space. The receiver features dual XLR outputs for discrete routing of each channel into your mixer as well as automatic frequency scanning for finding the strongest available signal. Additionally, the ULXD4D employs AES 256-bit encryption which delivers secure wireless transmission for applications that call for privacy.

Shure ULXD4D Dual-Channel Digital Wireless Receiver (H50: 534 to 598 MHz)

Part of the ULX-D wireless series, the Shure ULXD4D houses 2 independent digital receivers in a rugged, single-rack unit with an internal power supply. Two Ethernet ports support Dante digital audio, while RF cascade ports allow for antenna signal distribution to another receiver unit. Audio summing enables the receiver to function as a 2-channel mixer.

The ULX-D Series simplifies the set up and management of large numbers of wireless systems. It is ideal for professional sound reinforcement applications in large live venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities. Compatible with a wide selection of Shure transmitters and mic capsules, it delivers pristine 24-bit/48 kHz digital audio, capturing every detail with clarity, accurate low end, and crisp transient response.

The ULX-D operates in the UHF band, utilizing Digital Predictive Switching Diversity to protect the transmission from interference, delivering rock-solid RF signal stability without audio artifacts. In Standard mode you can run up to 17 channels per 6 MHz TV channel, at a range up to 330'. Alternatively, the High-Density mode lets you run up to 47 channels per 6 MHz TV channel, at a maximum range of 98'. The system offers AES-256 encryption for security.

Each receiver module has its own audio and RF meters, 60 dB of gain control, and XLR output. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, gain optimization to match any input source, and internal limiting to prevent clipping.

The Ethernet ports also allow multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure's Wireless Workbench software. In addition, the Channels Mobile App enables you to control the system remotely from an iOS device.

Shure Professional-Grade Digital Wireless Audio Quality
  • 24-bit/48 kHz digital audio delivers clear and accurate sound reproduction
  • Extended 20 Hz to 20 kHz frequency range with flat response
  • >120 dB wide dynamic range for excellent signal-to-noise performance
  • Up to 60 dB of independently adjustable gain for each channel
  • Works with a wide selection of Shure mics and transmitter types including the ULXD1 bodypack and ULXD2 handheld transmitters that provide complete mobility for presenters/performers, and the ULXD6 boundary and ULXD8 gooseneck base transmitters to accommodate meeting rooms with flexible seating layouts
  • ULX-D receivers are also compatible with QLX-D bodypack and handheld transmitters
Up to 60 Channels with Rock-Solid Transmission
  • 2-channel receiver operates in the H50: 534 to 598 MHz UHF band
  • 64 MHz tuning range lets you run up to 60 channels at the same location in Standard mode or 90 channels in High-Density mode
  • Digital Predictive Switching Diversity uses a microprocessor to switch antennas before dropouts occur
  • Comes with two remoteable 1/2 wave dipole antennas
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications using two discrete bodypacks on a single audio source
  • 256-bit AES encryption offers unbreachable privacy—uses unique, randomized encryption key generated every time encryption is enabled
  • Interference detection and alerts provide instant confirmation on both the receiver LCD and WWB software when interference is present
  • Adding UA874 active antennas or PA805 passive antennas increases the range of your system and offers increased protection against interference
  • The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time
Intelligent Hardware Simplifies Setup, Monitoring & Control
Networked Control



  • Ethernet networking enables real-time, precision monitoring and control of your system, as well as automatic frequency coordination across multiple receivers, using Wireless Workbench, SystemOn, and Axient Spectrum Manager software
  • Compatible with external controllers such as AMX and Creston
  • Cross subnet control-enabled for management between multiple facilities or venues

Networked Audio

  • Dante support allows you to seamlessly send uncompressed, multichannel audio over standard IP Ethernet networks with low-latency, sample-accurate synchronization, and automatic device discovery—on the same network as IT and control data

Two RF Cascade Ports

  • Allow distribution of RF antena signals to another receiver unit—ports provide DC bias voltage to power active antennas

Functionality

  • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Proprietary Gain Ranging optimizes system dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Internal limiter automatically engages to prevent digital clipping of your audio
  • Each receiver has an individual gain control and an XLR output with switchable mic/line level
  • Quick visual check using audio and RF LED meters with peak indicators
  • Intuitive front-panel controls with lockout feature and easily readable LCD with adjustable contrast
  • Remote Control: Make adjustments anywhere in the venue via the Channels Mobile App for iOS devices
  • Yamaha device ID allows simplified channel patching on CL consoles
  • Smart Power Management on Transmitters: Advanced SB900A lithium-ion rechargeable batteries with SBC chargers provide extended transmitter battery life over alkaline batteries, battery-life metering in hours and minutes (accurate to within 15 minutes), and detailed tracking of battery health status
UPC: 042406339001
Shure ULXD2/SM87 Digital Handheld Wireless Microphone Transmitter with SM87A Capsule (H50: 534 to 598 MHz)

The Shure ULXD2/SM87 is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with the SM87A supercardioid condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that rejects off-axis background noise, helping to reduce feedback.

With rugged, yet lightweight aluminum housing, the ULXD2/SM87 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
  • The SM87A supercardioid condenser capsule handles SPL levels up to 140 dB and offers a smooth frequency response with a gradual presence rise and controlled proximity effect tailored for vocals.
  • The interchangeable capsule design allows you to replace the SM87A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including SM86, SM58, KSM8, Beta 58A, Beta 87A, Beta 87C, KSM9 capsules, and more.
User-Friendly Features in a Rugged Housing
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
  • The power button conveniently doubles as mute switch, while preserving RF lock.
  • Frequency and power lockout functions prevent accidental or unauthorized changes during events.
  • A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
  • 1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Convenient Power Management Options
  • Operates for up to 11 hours on two AA batteries.
  • Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
  • The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

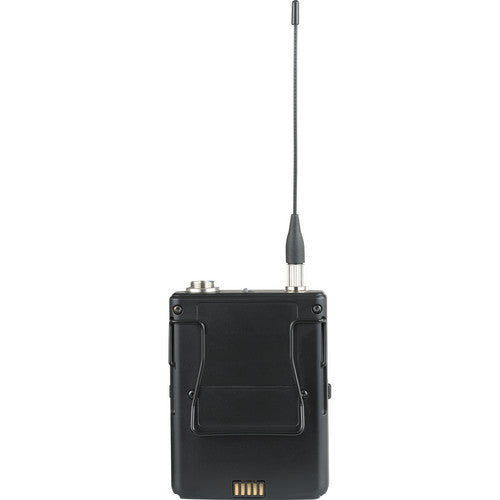

Shure ULXD1 Digital Wireless Bodypack Transmitter with TA4M (H50: 534 to 598 MHz)

The Shure ULXD1 is a digital wireless bodypack transmitter compatible with ULX-D and QLX-D receivers. With rugged, yet lightweight aluminum housing, it delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

The ULXD1 features a TA4M input, allowing you to connect a lavalier or headset mic of your choice for hands-free presentations and performances or a dedicated adapter cable for use with an instrument (mic and cable available separately).

Clear, Accurate, and Reliable Digital Audio
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
User-Friendly Features in a Lightweight Housing
  • The unit quickly syncs with a wireless receiver over IR at the touch of a button.
  • Proprietary Gain Ranging feature automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
  • Power button conveniently doubles as mute switch, while preserving RF lock.
  • Frequency and power lockout functions prevent accidental or unauthorized changes during events.
  • Backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
  • 1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
  • Detachable 1/4-wave antenna.
Convenient Power Management Options
  • Operates for up to 11 hours on two AA batteries.
  • Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero-memory effect.
  • External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
  • The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.
