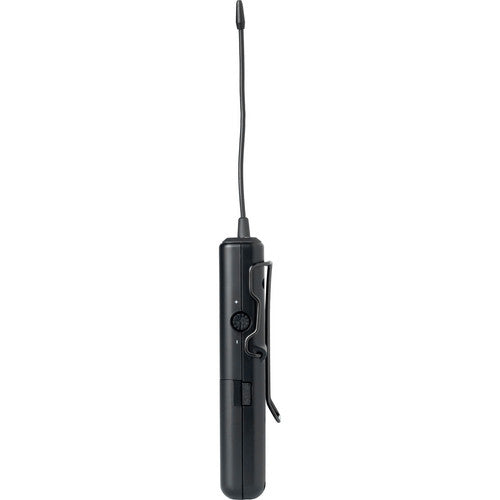

Shure PGXD1 Digital Wireless Bodypack Transmitter (900 MHz)


The Shure PGXD1 is a digital wireless bodypack transmitter compatible with the PGXD4 receiver. With lightweight, molded ABS housing and an ergonomic design, it is comfortable for performers and presenters to wear. The unit provides up to 10 hours of continuous use with two AA batteries, at a range up to 200'.

The PGXD1 transmitter operates anywhere in the world in the 900 MHz range, delivering high-quality 24-bit / 48 kHz digital audio. It features a TA4M 4-pin input jack that allows you to plug in the lavalier, headset, or instrument microphone of your choice or an adapter cable for guitar and bass. The recessed dial on the side provides 26 dB of continuously adjustable gain to accommodate a wide range of vocal delivery styles and volume levels.

Infrared ports on the transmitter and the receiver (available separately) allow you to sync the components to the same frequency with a single button press on the receiver. The transmitter's power button doubles as a mute button with a short press. The LED shows power, mute, and battery status, while the controls can be locked out to prevent accidental setting changes.

Compatible with a Wide Range of Microphones


  • The WL185 is a cardioid condenser lav mic built for clear vocal reproduction when using a PA system.
  • The WL184 supercardioid lavalier offers a narrower, feedback-resistant pickup pattern for louder events
  • The WL93 omnidirectional condenser lav is built for low visibility and clear vocal reproduction in low-volume environments


  • The PGA31 headset condenser microphone is built for clear and reliable hands-free audio, featuring a cardioid polar pattern that rejects unwanted noise and a tailored frequency response engineered for speech intelligibility
  • For fitness instructors, the SM31FH is a fitness headset condenser mic with a lightweight, sweat-resistant construction designed to withstand demanding workouts
  • The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications

Instrument Mics/Cables

  • Musicians can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications
  • The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass
