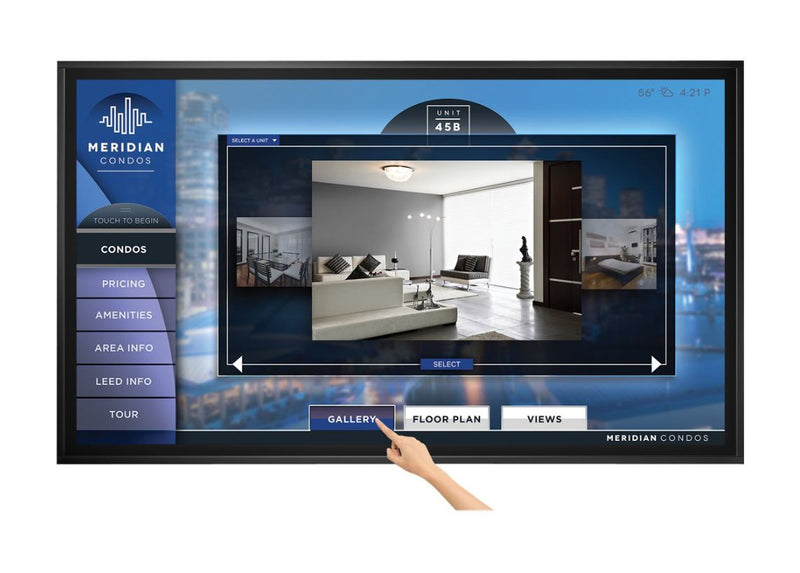

Planar 100" EPX100 4K LCD Display


General Information

Manufacturer: Leyard
Manufacturer Part Number: 998-0869-00
Manufacturer Website Address:
Brand Name: Planar
Product Series: EPX
Product Model: EPX100
Product Name: EPX100 4K LCD Display
Marketing Information:

The Planar® EPX Series is a 100" 4K LCD display with Ultra HD resolution (3840 x 2160), high brightness of 700 nits and a wide color gamut for stunning image quality and deeper, richer color reproduction. Designed with commercial-grade features, the Planar EPX Series meets the demanding requirements of retail and corporate digital signage applications.

Also available in touch, the Planar EPX100-T brings interactivity to the 4K immersive experience.

Optimized for Digital Signage

  • 4K resolution for life-like picture quality
  • High brightness of 700 nits for high impact messaging in high ambient lighting environments
  • Wide color gamut for deeper, richer color reproduction
  • OPS (Open Pluggable Specification) slot enables seamless integration of compatible digital signage hardware
  • Logo-free bezel

High Performance

  • 4K@60Hz DisplayPort and HDMI connectivity including HDCP 2.2
  • Upscaling of Full HD or sub-1080p content to fill the entire 4K display area
  • 24x7 operation and reliability to support extended use
  • Durable, all metal enclosure
  • Fanless for whisper-quiet operation

Configuration Flexibility

  • Mountable in either portrait or landscape orientation
  • VESA mount compatibility
  • Simultaneous multi-source viewing of 2 or 4 sources at one time

Product Type: Digital Signage Display

Technical Information

Bezel Width: 39.4 mil Top/Bottom
Bezel Width: 51.2 mil Left/Right

Display & Graphics

Screen Size: 100"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Pixel Pitch: 22.6 mil
Backlight Technology: Direct LED


Scan Format: 2160p
Color Depth: 10-bit
Brightness: 700 Nit
Color Gamut: 98% NTSC

Network & Communication

Ethernet: Yes


USB: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 1
Number of DisplayPorts: 2

Power Description

Input Voltage: 230 V AC
Input Voltage: 120 V AC

Physical Characteristics

Color: Black
Height: 50.7"
Width: 89.3"
Depth: 4.5"
Weight (Approximate): 260 lb


Package Contents:

  • EPX100 4K LCD Display
  • Power cord
  • HDMI cable
  • IR cable
  • Remote control
  • Cable clamps

Environmentally Friendly: Yes
Environmental Certification: cTUVus
TAA Compliant: Yes


Limited Warranty: 3 Year
