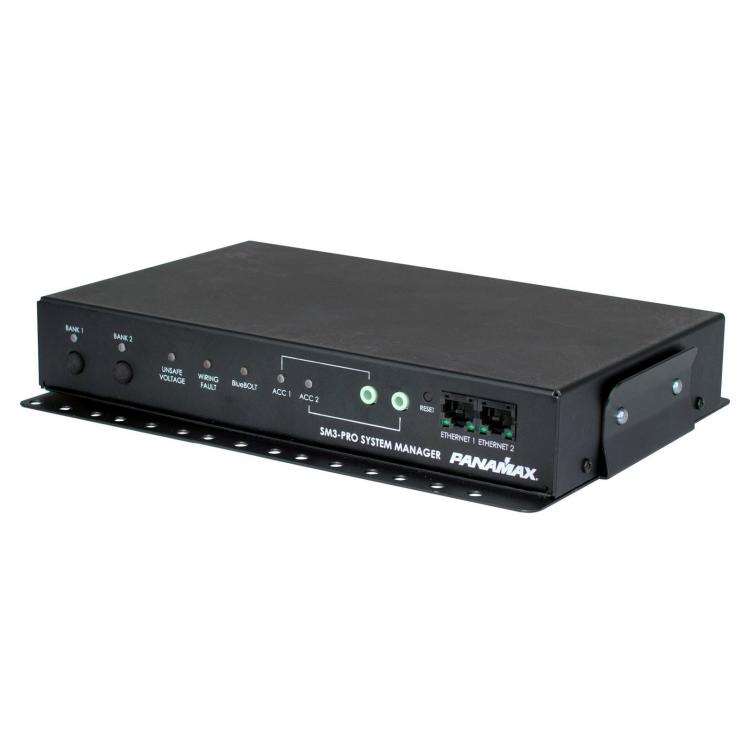

Panamax SM3-PRO Features at a Glance
- Compact BlueBOLT enabled System Manager (Power/Energy/Network)
- (3) outlets (2 banks)
- 2-Port Network Switch
- AVM + Protect-or-Disconnect Protection
- (2) Accessory Ports for External Sensors/Triggers
- Mounting Kit Included
- Front panel bank override buttons and indicator lights
Panamax SM3-PRO Specifications
- General
-
FamilyPro Series
-
Line Voltage120 (Volts)
-
Number of Outlets3
-
Outlet DescriptionsAll 3 outlets filtered and surge protected. 2 individually controlled banks of outlets. 1 bank of 1 outlet and 1 bank of 2 outlets.
-
ControlOn/Off control to 2 outlet banks through BlueBOLT. Push-button power switch instantly power all outlets on or off (overrides BlueBOLT power commands).
-
CompliancecCSAus Certified (LR58861)
-
USB ChargingN/A
-
Low Voltage TriggerN/A
-
AC Power Cord2 ft. detachable
-
Dimensions7″ W X 10″ D X 1.6″ H (mounting bracket included)
-
Weight4.8 lbs
- AC Protection
-
AC Protection TechnologyProtect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing
-
Undervoltage Shutoff95 VAC ± 2 VAC
-
Over-Voltage Shutoff134 VAC ± 2 VAC
-
Maximum Current Rating15 (Amps)
-
Initial Clamping Level200V Peak
-
Voltage Protection Rating300V L-N
400V L-G
400V N-G
- Filtration
-
Filtration TechnologyRFI/EMI Filtration
-
Filtration Rating-15.9dB @ 10kHz
-43.5dB @ 100kHz
-49.3dB @ 1MHz
-
Signal Line ProtectionNo
- Shipping Info
-
Length 12.3 (Inches)
-
Width 9.3 (Inches)
-
Height 5.1 (Inches)
-
Weight 5.6 (Lbs)
-
Master Pack Qty6
