Bose Professional 40804 FreeSpace DS 100F 5.25" 2-Way 100W Passive Loudspeaker (Single, Black)

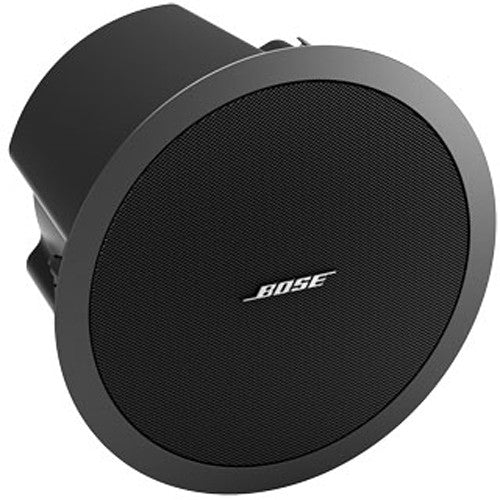

The black Bose Professional FreeSpace DS 100F is a flush-mount passive 2-way loudspeaker with a 5.25" woofer, a 2.25" Twiddler driver, and a 160° conical coverage pattern designed for intelligible foreground music and speech reproduction in retail stores, restaurants, resorts, and more.

It handles up to 100W continuous (400W peak) and is capable of producing a maximum peak SPL of 111 dB. The DS 100F utilizes an integrated multi-tap transformer, which can be configured for an array of 70V/100V settings via a convenient thumbwheel beneath the grille.

The DS 100F is voiced to ensure consistent tonality throughout the FreeSpace DS family, so it can be installed alongside DS 16 and DS 40 loudspeakers without compromising the system's sonic signature. Installation options (available separately) include ceiling-mount brackets, adjustable tile bridges, pendant-mount kits, and square grilles.

  • Ideal for use in retail stores, restaurants, concourse, transportation facilities, resorts, hospitality venues, houses of worship, and ballrooms
  • Extended-range, high-output loudspeaker with a single 2.25" Twiddler driver and a 5.25" woofer in a ported enclosure
  • Delivers a 160° conical coverage pattern and intelligible foreground music and speech reproduction for flush-ceiling or pendant-mount applications in ceilings up to 32' high
  • Frequency range (-10 dB) down to 60 Hz
  • Maximum SPL of 105 dB (continuous) / 111 dB (peak)
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40, and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Supported by a suite of optional accessories—ceiling-mount bracket, adjustable tile bridge, pendant-mount kit, and square grille
